2.4 inch IPS TFT LCD with Resistive Touchscreen

(No reviews yet) Write a Review
Model:
NHD-2.4-240320AF-CTXP-T
Size:
2.4" Diagonal | 240x320 Pixels
Display Type:
IPS
Touchscreen:
4-Wire Resistive
Interface:
SPI / Parallel
Controller/Driver:
ST7789VI
Resources:
$20.18
  • 2.4 inch IPS Resistive Touchscreen TFT LCD front cropped
  • 2.4" LCD IPS Resistive Touchscreen display front ON
  • 2.4 inch IPS Resistive Touchscreen LCD TFT display front OFF

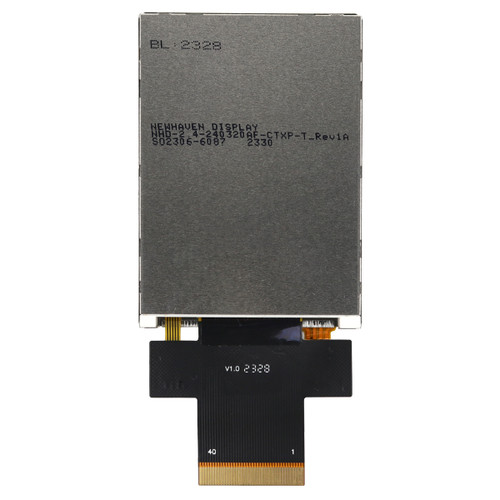

  • 2.4 inch IPS Resistive Touchscreen LCD back
  • Drawing Specification for NHD-2.4-240320AF-CTXP-T

NHD-2.4-240320AF-CTXP-T | 2.4" IPS TFT LCD | 240x320 Resolution | Parallel or SPI Interface

This is 2.4-inch IPS TFT LCD display features a resolution of 240x320 pixels and a backlight luminance of 280 nits. This display offers stunning sharpness, superior color reproduction, better image consistency, and high contrast with full viewing angles due to the IPS technology built into this Liquid Crystal Display. It offers two interface options: 8-bit/16-bit 8080-II parallel interface or 3-wire SPI interface. The display also has a 40-pin FFC, 0.5mm pitch connection style, with a 4-pin 1.0mm pitch for the touch panel and comes with EMI shielding. It is powered by the ST7789VI controller, which ensures reliable and efficient performance and the SPI interface provides seamless integreation with Arduino. These specifications make this IPS display compatible with Arduino and other similar development and prototyping boards.

2.4" IPS TFT with 4-Wire Resistive Touchscreen

This compact and slim LCD IPS comes with a 4-wire resistive touch panel, which makes it an excellent choice for projects that require high-end visual output and simple touch functionality. It has been designed with the same mechanical footprint as the standard TN display, making it compatible with existing overlays, enclosures, and other assembly components used with the TN display. All our displays are RoHS compliant and adhere to strict environmental and safety standards.

Product Overview

2.4" TFT LCD Product Specifications

Size: 2.4" diagonal
Display Format: 262K colors; 240x320 pixels
Display Type: IPS
Display Mode: Transmissive
Optimal View: Full view
Touchscreen: Resistive
Outline L x W x H: 42.8mm x 59.91mm x 3.93mm
Viewing Area L x W: 38.32mm x 50.56mm
Active Area L x W: 36.72mm x 48.96mm
Supply Voltage: 3.3V
Luminance: 280 nits
Interface: 8-bit/16-bit 8080-II Parallel or 3-wire SPI
Controller Type: ST7789VI
Compatibility: Arduino and similar development boards
Connection Type: 40 pin FFC (TP: 4 pin FFC)
Operating Temperature: -20°C ~ 70°C
Storage Temperature: -30°C ~ 80°C
Built-in Mounting: None
Added Feature: EMI shielding
