16x1 Character LCD | STN+ Yellow/Green Display with Yellow/Green Backlight

(No reviews yet) Write a Review
Model:
NHD-0116AZ-FL-YBW
Size:
1 Row | 16 Characters
Backlight Color:
Yellow/Green
Display Type/Mode:
STN (+) Yellow/Green, Transflective
Controller/Driver:
ST7066U
Resources:

Request volume pricing

Save with our volume discounts. Request special pricing for larger quantities. Get volume pricing.

$11.95
  • 16x1 Character single line LCD STN+ Yellow/Green with Y/G Backlight Display Front  On
  • 16x1 single line LCD with yellow - green background for Arduino, Raspberry Pi, and other development boards.

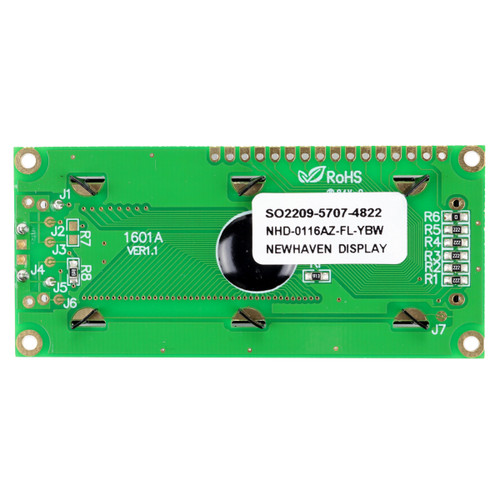

  • 16x1 Character single line LCD STN+ Yellow/Green with Y/G Backlight Display back PCB
  • Drawing Specification for NHD-0116AZ-FL-YBW

NHD-0116AZ-FL-YBW | 16x1 Character LCD Display | Transflective LCD with Yellow - Green Backlight

The Newhaven model NHD-0116AZ-FL-YBW is a 16x1 character LCD with a yellow/green display and backlight. It is a transflective LCD, which means that it can be seen in both ambient light and with the backlight on for environments with poor lighting conditions for better visibility. This single line LCD display has a wide operating temperature range of -20 to 70 degrees Celsius, making it suitable for different applications.

Yellow - Green Background Monochrome LCD | STN (+) Positive

The characters on the display are dark pixels on a bright yellow/green background. The backlight is a yellow/green LED that provides even illumination across the display. The display communicates via parallel communications, operates at a supply voltage of 5V, and has a built-in ST7066U controller chip. This monochrome, RoHS-compliant, high-quality display module is RoHS-compliant, can be used for Arduino, Raspberry Pi, and other compatible development boards. The NHD-0116AZ-FL-YBW display module is subjected to rigorous quality tests to ensure its durability and performance under various conditions which is great for commercial and industrial applications.

LCD Product Specifications

Number of Characters: 16
Number of Rows: 1
Display Format: 16x1
Display Type: STN (+) Yellow/Green
Display Mode: Transflective
Optimal View: 6:00
Outline L x W x H: 80.0mm x 36.0mm x 13.5mm
Viewing Area L x W: 64.5mm x 13.8mm
Active Area L x W: 63.5mm x 12.8mm
Supply Voltage: 5.0V
Backlight: Yellow/Green
Interface: Parallel
Compatibility: Arduino and similar development boards
Controller Type: ST7066U
Connection Type: 16x1 Thru Hole with 2.54mm pitch
Operating Temperature: -20°C ~ 70°C
Storage Temperature: -30°C ~ 80°C
