Stable 128x64 Pixel FSTN+ Gray Graphic LCD with White Backlight
Perfect for your next project, the NHD-C12864A1Z-FSW-FBW-HTT provides a clear way to show data and simple monochrome graphics. It features a 128x64 pixel FSTN+ Gray LCD panel with White backlight and a transflective screen for excellent visibility. The 6:00 optimal viewing angle keeps information clearly legible from multiple directions. With a ST7565R controller and 4-Wire SPI interface, it is easy to connect to Arduino and similar development boards.
This display is a chip-on-glass design, which allows you more flexibility in incorporating it into your design because it is not bonded to a PCB. It runs on low 3.3V power for more efficient applications. It operates between -20° and 70° C, making it dependable in extreme conditions, and it is RoHS compliant for environmental safety.

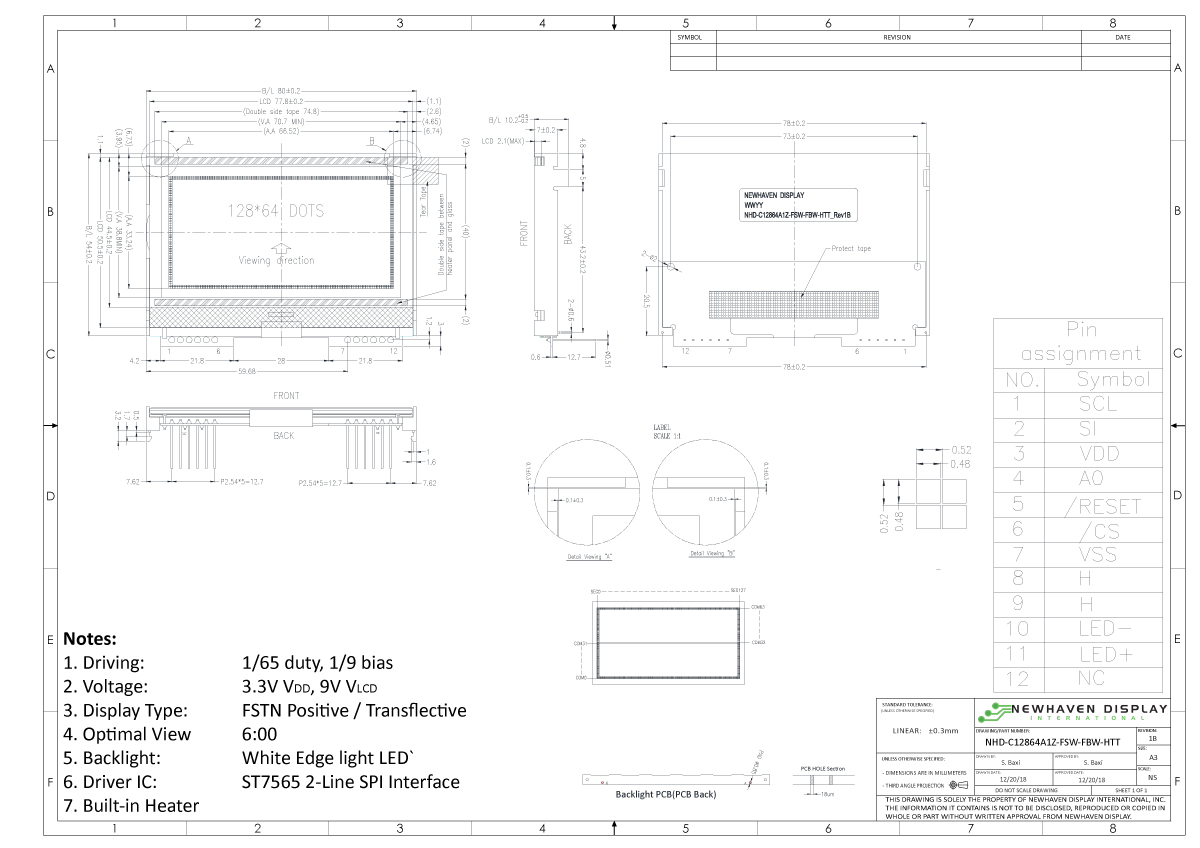

NHD-C12864A1Z-FSW-FBW-HTT: Technical Specifications
| Display Format | 128x64 Pixels |
|---|---|
| Display Type | FSTN (+) Gray |
| Display Mode | Translfective |
| Optimal View | 06:00 |
| Outline L x W x H | 80mm x 54mm x 10.2mm |
| Viewing Area L x W | 70.7mm x 38.8mm |
| Active Area L x W | 66.52mm x 33.24mm |
| Supply Voltage | 3V |
| Backlight | White |
| Interface | 4-Wire SPI |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | ST7565R |
| Connection Type | Two 1x6 Pins with 5.54mm Pitch |
| Operating Temperature | -40° ~ 70° C |
| Storage Temperature | -30° ~ 80° C |
| Additions | Built-in 12V Heater |
3 Reviews
-
Great product
Product met needs.
-
Great product
Direct replacement of a smoker controller display.
-
Quality
Datasheet is not very clear about controller interface/instructions, it is just copy and paste from LCD controller datasheet. This makes it confusing for beginners with graphic LCD.
