Advanced BeagleBone Cape with 7" IPS LCD Display and Capacitive Touchscreen
The NHD-7.0CTP-CAPE-P BegalBone cape was designed with our 7" NHD-7.0-800480AF-ASXP-CTP display in mind. We took the 10-point multi-touch capacitive touchscreen, 850 nit brightness, and 800 x 480 pixel resolution that already made the display a great choice, and added in upgraded EMI shielding, an on-board dip switch for EEPROM configuration, and secondary headers for additional cape connections. We also threw in M3-compatible 3.5mm mounting holes, a reset button, write protection pins, PWM backlight control, and an LED power indicator for good measure, making this the ultimate plug-and-play solution for your next Android or Linux BeagleBone project.
NHD-7.0CTP-CAPE-P: Technical Specifications
| Product Type | BeagleBone Cape |
|---|---|
| Integrated Display | NHD-7.0-800480AF-ASXP-CTP |
| Display Format | 800x480 Pixels |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | Capacitive with Cover Glass |
| Luminance | 850 Nits |
| Display Color | 24-Bit True Color |

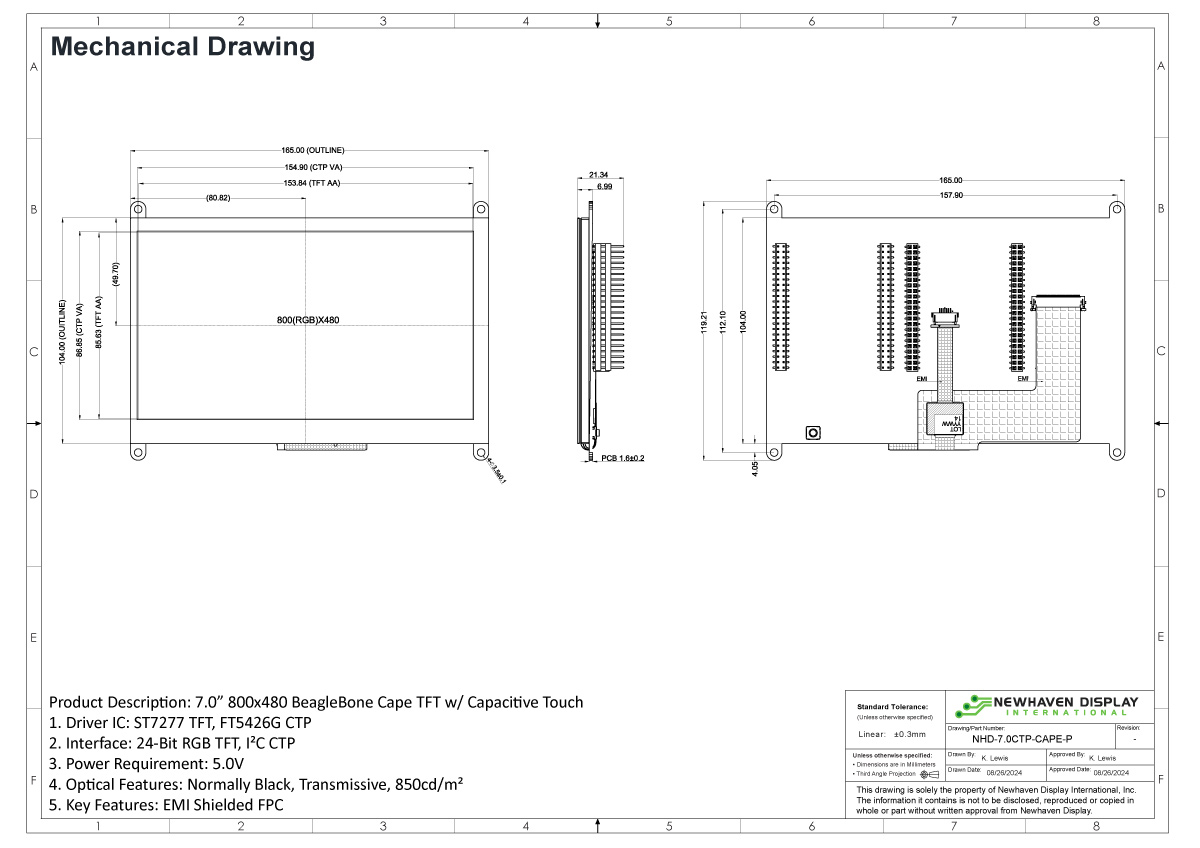

| Outline L x W x H | 165mm x 119.21mm x 21.34mm |
| Viewing Area L x W | 154.9mm x 86.85mm |
| Active Area L x W | 153.84mm x 85.63mm |
| Controller Type | ST7277 |
| Supported Operating Systems | Android and Linux |
| Operating Temperature | -20° ~ 70°C |
| Storage Temperature | -30° ~ 80°C |
| Built-in Mounting | 3.5mm Mounting Holes for M3 Screws |
| Built-in EMI Shielding | Yes |
| Additions | Secondary Cape Slot, PWM Backlight Control |
