Surface Mount Backlight Connector | 2-Pin Vertical

(No reviews yet) Write a Review
Model:
A2001WV-S-2P SMT
Mounting Angle:
Vertical
Pitch:
2 mm
Dimension:
2 mm x 8 mm
Resources:
TL47,34
  • 2 pin surface mount, vertical display connector
  • two pin, surface mount connector, vertical display connector connector
  • 2-pin, surface mount connector, vertical LCD connector

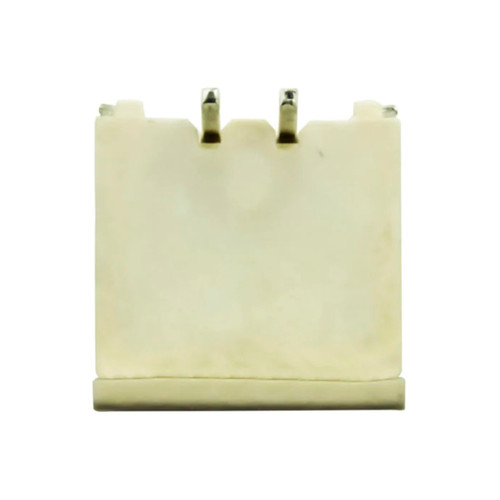

A2001WV-S-2P SMT | Two Pin Backlight Connector | Vertical Connector | Surface Mount Connector

This 2 Pin, surface mount backlight connector is a display accessory that connects quickly and easily with display backlights. The connector is made of Nylon material with a 2 mm pitch housing. The current rating for this vertical connector is 2A, and its voltage rating is 100VAC. Designed to handle extreme environments, this model has a flammability rating of UL94V-0 and operates exceptionally well within a temperature range of -40°C to 105°C. The accessory is also RoHS and REACH compliant.

Vertical Backlight Connector Specifications

Number of Positions: 2 Position
Pitch: 2 mm
Number of Rows: 1 Row
Mounting Angle: Vertical
Contact Gender: Pin (Male)
Contact Material: Brass
Contact Plating: Tin
Housing Material: Nylon
Dimmensions: 2 mm x 8 mm
Housing Color: White
Operating Temperature: -40°C ~ 150°C
Flammability Rating: UL 94V-0
Current Rating: 2 A
Voltage Rating: 100V AC,DC
Insulation Resistance: 1000 MOhms
