New 1.5" and 4.0" Square TFT Displays
Symmetry Meets Performance

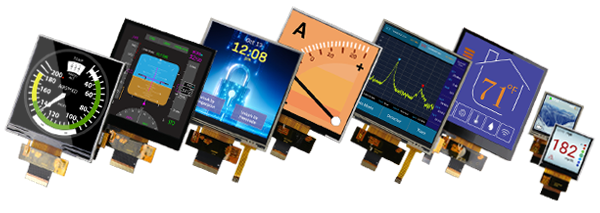

Eight new IPS TFT LCDs in square-format ranging from 240×240 to 480×480 pixel resolution.
These new displays mark the first square TFT LCDs in Newhaven Display’s product line, available in 1.5-inch and 4.0-inch diagonal sizes. Their perfectly symmetrical design offers a modern visual aesthetic while providing engineers with a versatile form factor ideal for compact interfaces, wearables, control systems, and next-generation product designs. Built with advanced IPS technology, each display delivers ultra-wide viewing angles, vivid picture, accurate color reproduction, and high brightness for excellent readability in any lighting environment.
The 1.5” TFT model features a crisp 240×240 pixel resolution, average backlight brightness of 1200 nits, and optional 4-wire resistive touchscreen. It also supports both SPI and Parallel interfaces for flexible integration.
The 4.0” models offer a sharp 480×480 pixel resolution, average brightness of 1000 nits, and 4-wire resistive or capacitive multi-touch screens with I2C interface. They are available with either 24-bit Parallel RGB or 2-lane MIPI DSI interfaces for high-speed, stable graphics performance, and all models come equipped with built-in EMI shielding to ensure reliable operation in demanding environments.
Designed for durability and versatility, these square TFTs are well-suited for medical, industrial, manufacturing, consumer electronics, and aviation applications. Ideal use cases include HMI control panels, patient monitoring systems, laboratory instruments, oscilloscopes, signal analyzers, instrument clusters, navigation systems, thermostats, home control panels, access control devices, smart speakers, coffee machines, handheld analyzers, portable loggers, fitness trackers, ticketing systems, and other compact or portable products requiring sharp, high-quality visuals.
Notable Features
- Square form factor
- IPS TFT technology with full viewing angles
- Sunlight readable
- 3.3V supply voltage
- Built-in EMI shielding
1.5” Diagonal Size:
- 240x240 pixel resolution
- Resistive touchscreen model available
- Average brightness of 1200 nits
- ¾-Wire SPI or 8-bit 8080 Parallel interface
- ST7789VI Controller IC
- 28-pin FPC connection with 0.5mm pitch
4.0” Diagonal Size:
- 480x480 pixel resolution
- Resistive and capacitive touchscreen models available
- Average brightness of 1000 nits
- 24-bit Parallel RGB or 2-Lane MIPI DSI interface
- ST7701SN Controller IC
- 40-pin FPC connection with 0.5mm pitch
Purchase Products:
| NHD-1.5-240240AF-CSXP-T |
| NHD-1.5-240240AF-CSXP |
| NHD-4.0-480480AF-MSXP-CTP |
| NHD-4.0-480480AF-MSXP-T |
| NHD-4.0-480480AF-MSXP |
| NHD-4.0-480480AF-ASXP-CTP |
| NHD-4.0-480480AF-ASXP-T |
| NHD-4.0-480480AF-ASXP |
Please visit our Support Center for product related inquiries and support.
