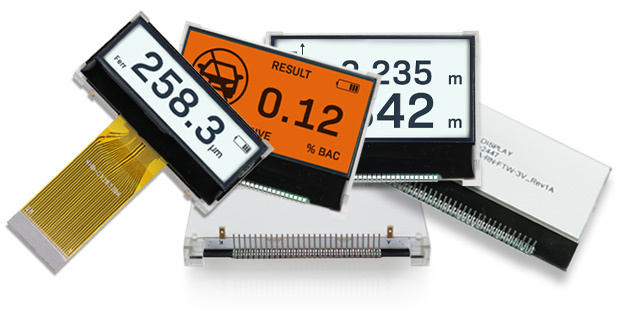

Four new graphic Chip-On-Glass (COG) displays in a resolution size of 128x32 or 128x64 pixels
These compact LCDs provide high contrast pixel graphics and wide viewing angles due to the new designs engineered for optimal readability. Designed with transflective or reflective FSTN positive technology for excellent visibility across a wide range of environments. Choose from COG models featuring a bright white LED backlight, an RGB backlight with customizable colors, or opt for a reflective display without a backlight for low-power applications. The displays offer options in a 6:00 or 12:00 optimal view for various mounting orientations and application uses. Each display includes a built-in ST7565R controller and supports 4-Wire SPI or 8-bit 6800/8080 Parallel interface for easy integration with Arduino and other development boards. All LCDs operate at a low 3.0V supply voltage and operate reliably in temperatures from -20°C to 70°C. These new graphic COG displays are built for ease with built-in FPC cable or pin connectors, ideal for portable devices and industrial applications.
Display Features
- Graphic COG LCD
- 128x32 or 128x64 pixel resolution
- FSTN (+) high contrast
- With or without white LED backlight options
- Option with RGB backlight
- 4-Wire SPI or 8-bit 6800/8080 Parallel Interface
- Wide viewing angles with 6:00 or 12:00 optimal view
- Built-in ST7565R controller
- Low power 3.0V
- FPC cable or pin/solder connection types
- Compatible with Arduino
- Wide operating temperature from -20°C to +70°C
Purchase Products:
| NHD-C12832DA-FSW-FBW-3V3 |
| NHD-C12864DA-FSRGB-FBW-3V3 |
| NHD-C12864DA-FSW-FBW-3V3 |
| NHD-C12864FA-RN-FTW-3V |
Please visit our Support Center for product related inquiries and support.
