Convenient I2C to USB Adapter Board for 640x480 Resolution Capacitive Touchscreen Displays
This I2C to USB adapter board makes touchscreen development fast and straightforward. Easily connect our capacitive touchscreen LCD displays to your system with the NHD-CTP-USB-ADAPTER. This model is designed for seamless compatibility with our 640x480 resolution TFT displays such as NHD-3.5-640480EF-MSXP-CTP and a FT5426G touch controller. This plug-and-play adapter evaluation board has a 6-pin Molex connector for the capacitive touch panel FFC. It also features an on/off switch, LED power indicator, and USB Micro-B connector to supply 5V power as a USB-HID device so you can start developing immediately. Perfect for use with Raspberry Pi applications, Windows or Windows Embedded PCs, or a touchscreen HMI running Linux or another embedded system. Quickly and easily secure the board into an enclosure using the built-in mounting holes.
NHD-CTP-USB-ADAPTER-640480: Technical Specifications
| Function | CTP Adapter Board for I2C to USB |
|---|---|
| Supply Voltage | 5.0V |

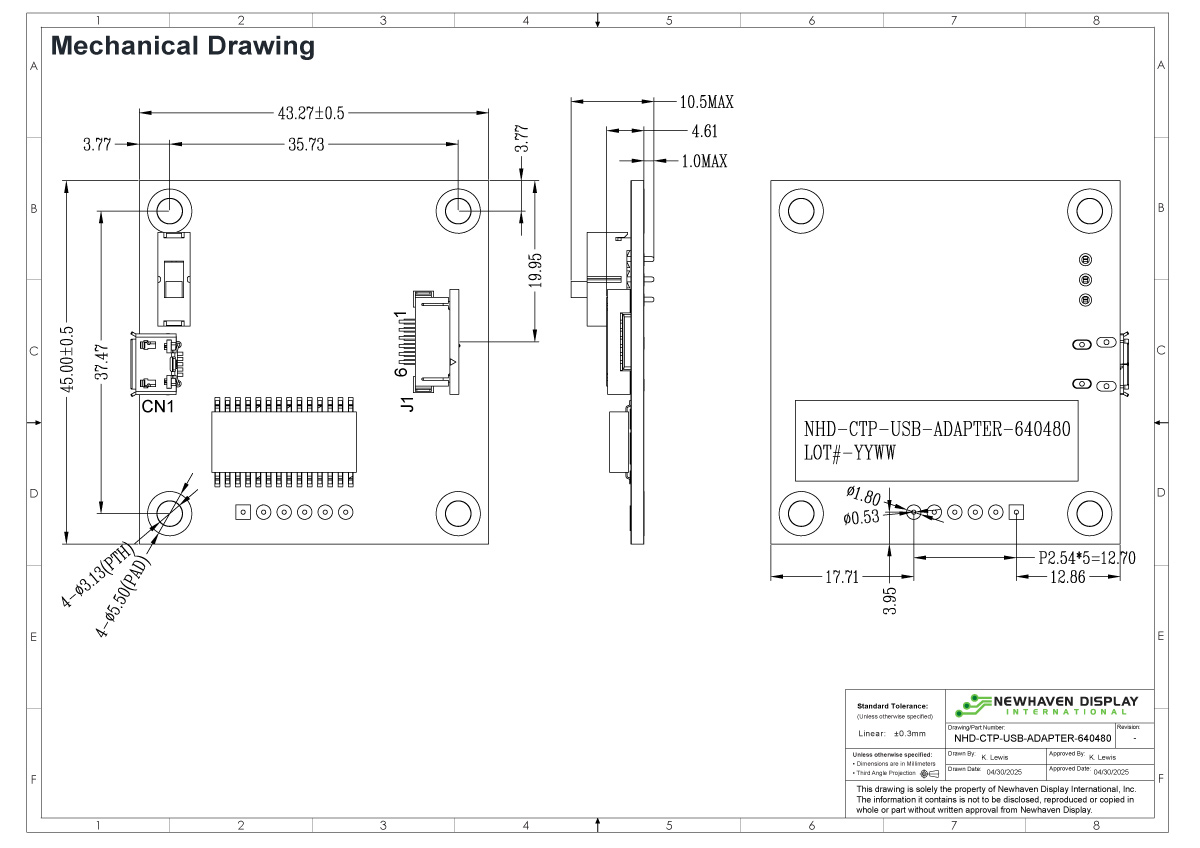

| Outline L x W x H | 43.27mm x 45.0mm x 10.5mm |
| Connection Type | USB Micro-B |
| Controller Type | FT5426G |
| Compatible With | 640x480 Resolution Capacitive Displays |
| Mounting | 3M Mounting Holes |
| Additions | LED Power Indicator |
