5" Sunlight-Readable Capacitive Touch IPS TFT with vibrant graphics and built-in graphics engine
This 5" IPS TFT LCD delivers vibrant visuals with 800x480 resolution, full viewing angles, and a bright 900-nit LED backlight for sunlight readability. Designed with a shielded FPC for EMI protection, it's built for clarity and durability in demanding environments.
The optically bonded capacitive touchscreen features a built-in I2C interface and cover glass, offering responsive multi-touch functionality for intuitive user interaction.
Powered by the FTDI/Bridgetek FT813 Embedded Video Engine (EVE), this module streamlines your design with built-in support for graphics, touch, and audio. Onboard widgets like sliders, buttons, and gauges make it easy to create dynamic interfaces for medical, industrial, kiosk, or smart home applications, all without the need for additional drivers or components.
Using your own cover glass or overlay with our capacitive touchscreen displays? Talk to our engineering team about having us calibrate the touchscreen's sensitivity to maintain optimal performance. We can also work with you to customize and install cover glass so you don't have to.
NHD-5.0-800480FT-CSXP-CTP: Technical Specifications
| Size | 5" Diagonal |
|---|---|
| Resolution | 800x480 Pixels |
| Color | 24-Bit True Color |
| Display Type | Sunlight Readable IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | Capacitive + Cover Glass |

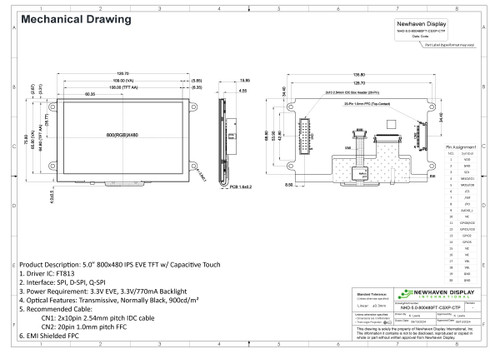

| Outline L x W x H | 135.8mm x 75.8mm x 15.95mm |
| Viewing Area L x W | 109mm x 65.8mm |
| Active Area L x W | 108mm x 64.8mm |
| Supply Voltage | 3.3V |
| Luminance | 900 Nits |
| Interface | SPI/D-SPI/Q-SPI |
| Compatibility | Arduino and similar development boards |
| Display Controller Type | FT813 Embedded Video Engine |
| CTP Controller Type | FT5426G |
| Connection Type | 20-Pin FFC Connector , 20-Pin Box Header |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | 3.5mm Mounting Holes |
| Built-In EMI Shielding | Yes |
3件のレビュー
-
Great product and support
So far we have had no problem with anything, There is great documentation and good support.
-
The best
The quality of the TFT is simply excellent: the color range, brightness, viewing angle, and speed of the FT813 chip combine in a great way to make it a very useful screen for portable projects. Without a doubt I will purchase it again
-
WORTH IT
A ON THE LITTLE EXPENSIVE SIDE BUT WORTH IT FOR THE EXTRA FEATURES BUILT IN. REPLACED A BASIC LCD WITH THIS ONE, FANTASTIC UPGRADES
