Get high resolution graphics, multi-point touch, and reliable performance with this 5" premium MVA TFT
This 5.0" HDMI display combines high-resolution visuals with intuitive touch functionality for a smooth user experience across embedded systems. With a bright 527-nit LED backlight and 800x480 pixel screen, the module delivers sharp detail and vibrant colors. Its MVA display technology ensures consistent image clarity across wide viewing angles, making it ideal for both personal and commercial applications.
Built for plug-and-play convenience, the USB-HID capacitive touchscreen includes durable cover glass and is automatically recognized by Windows without the need for driver installation. This makes it a smart choice for projects that prioritize ease of setup and professional-level display quality.
Powered by the Texas Instruments TFP401A HDMI/DVI receiver and an integrated LED driver with PWM, this display supports stable video input and adjustable brightness control. Designed for compatibility with Raspberry Pi, BeagleBone, and other HDMI-capable systems, it connects easily via HDMI and USB.
No external enclosure is needed for installation thanks to built-in 3.5mm mounting holes. The module operates in a wide temperature range, making it dependable in both indoor and light industrial environments. All of our displays are RoHS compliant and meet strict safety and environmental guidelines.
Using your own cover glass or overlay with our capacitive touchscreen displays? Talk to our engineering team about having us calibrate the touchscreen's sensitivity to maintain optimal performance. We can also work with you to customize and install cover glass so you don't have to.
NHD-5.0-HDMI-N-RTXL-CTU: Technical Specifications
| Size | 5" Diagonal |
|---|---|
| Resolution | 800x480 Pixels |
| Color | 24-Bit True Color |
| Display Type | Premium MVA |
| Display Mode | Transmissive |
| Optimal View | 70º Full View |
| Touchscreen | USB-HID Capacitive + Cover Glass |

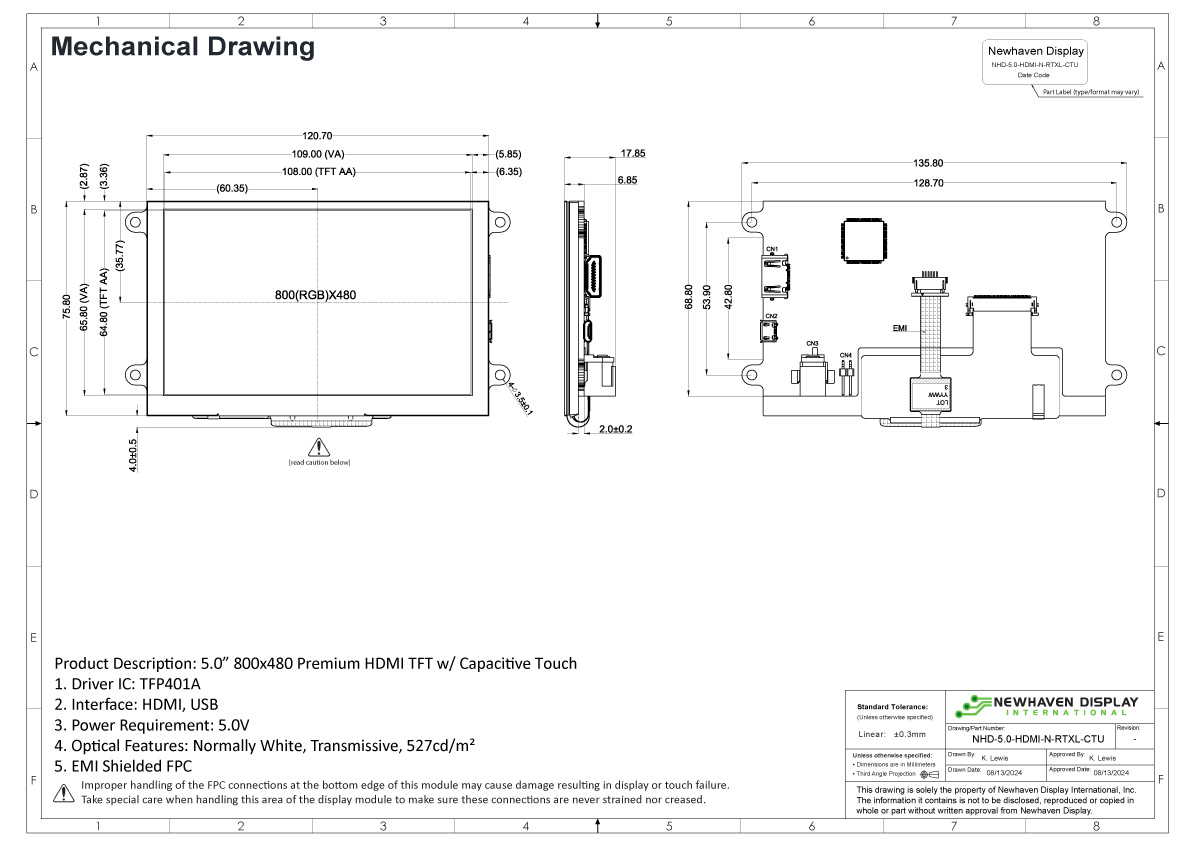

| Outline L x W x H | 135.8mm x 75.8mm x 17.68mm |
| Viewing Area L x W | 109mm x 65.8mm |
| Active Area L x W | 108mm x 64.8mm |
| Supply Voltage | 5.0V |
| Luminance | 527 Nits |
| Interface | HDMI, USB |
| Compatibility | Raspberry Pi, BeagleBone, and similar boards |
| Display Controller Type | TFP401A |
| CTP Controller Type | FT5426G |
| Connection Type | HDMI, USB |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | 3.5mm Mounting Holes |
| Built-In EMI Shielding | No |
| Additions | LED Driver with PWM |
