この2.8インチTN TFT LCD（抵抗膜方式タッチパネル搭載）で、インタラクティブプロジェクトに直感的な操作性を実現します。

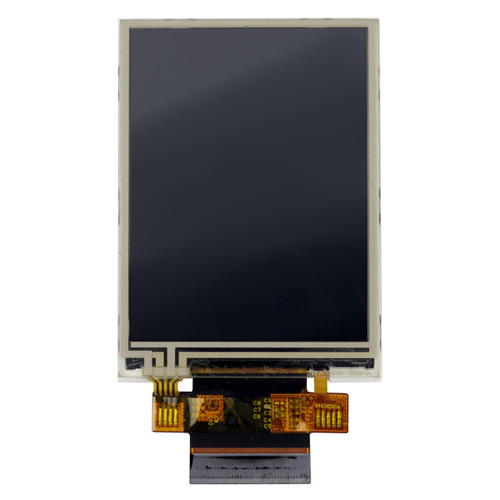

Enhance your embedded projects with this 2.8" TN TFT LCD. With 240x320 resolution and a 336-nit backlight, it delivers clear visuals with a 6:00 optimal view. The 4-wire resistive touchscreen allows intuitive interaction, making it ideal for interactive menus, control systems, or any application where simple touch functionality improves user experience. Its low 3.0V power supply keeps designs compact and efficient.
Flexible integration is easy with 8/9/16/18-bit parallel, 6/16/18-bit RGB, or 3/4-wire SPI interfaces, plus a 45-pin 0.5mm FFC connector for reliable installation. Built-in EMI shielding ensures stable performance, while the ILI9341V controller provides smooth graphics and consistent operation.
RoHS compliant and engineered for dependable performance, this display is perfect for IoT, industrial, and consumer applications that need interactive, touch-enabled visual output.

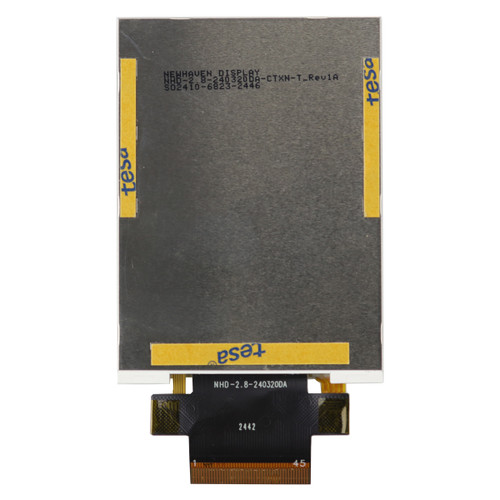

NHD-2.8-240320DA-CTXN-T: 技術仕様
| Size | 2.8" Diagonal |
|---|---|
| Resolution | 240x320 Pixels |
| Colors | 262K |
| Display Type | Standard TN |
| Display Mode | Transmissive |
| Optimal View | 6:00 |
| Touchscreen | 4-Wire Resistive |
| Outline L x W x H | 50mm x 69.2mm x 3.75mm |
| Viewing Area L x W | 45.2mm x 59.6mm |
| Active Area L x W | 44.2mm x 58.6mm |
| Supply Voltage | 3.0V |
| Luminance | 336 Nits |
| Interface | 8/9/16/18-bit Parallel, 6/16/18-bit RGB, or 3/4-wire SPI |
| Compatibility | Arduino or similar development boards |
| Controller Type | ILI9341V |
| Connection Type | 45-Pin FFC |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | Yes |
