High-Performance 2.7" Monochrome Yellow Graphic OLED
The monochrome yellow graphics of the NHD-2.7-12864WDY3-CTP stand out against its deep black background, making it an excellent choice to get your message across clearly. The display features a 2.7" capacitive touchscreen and EMI shielding, allowing you to add intuitive user input and human-machine interfacing while maintaining a clean aesthetic without having to worry about electromagnetic disruptions. Its 128x64 pixel screen is readable from any direction, thanks to the unparalleled viewing angles created by its passive-matrix OLED technology. Quick to work into projects using Arduino or similar development boards, the SSD1322 controller is easy to integrate because of its versatile Serial and Parallel interface options.
It operates between -40 and -85°C to withstand the most demanding environments, runs on 3.3 volts, and is RoHS compliant for environmental safety.
Using your own cover glass or overlay with our capacitive touchscreen displays? Talk to our engineering team about having us calibrate the touchscreen's sensitivity to maintain optimal performance. We can also work with you to customize and install cover glass so you don't have to.
NHD-2.7-12864WDY3-CTP: Technical Specifications
| Size | 2.7" Diagonal |
|---|---|
| Display Format | 128x64 Pixels |
| Display Type | Graphic OLED Module |
| Display Color | Monochrome Yellow |

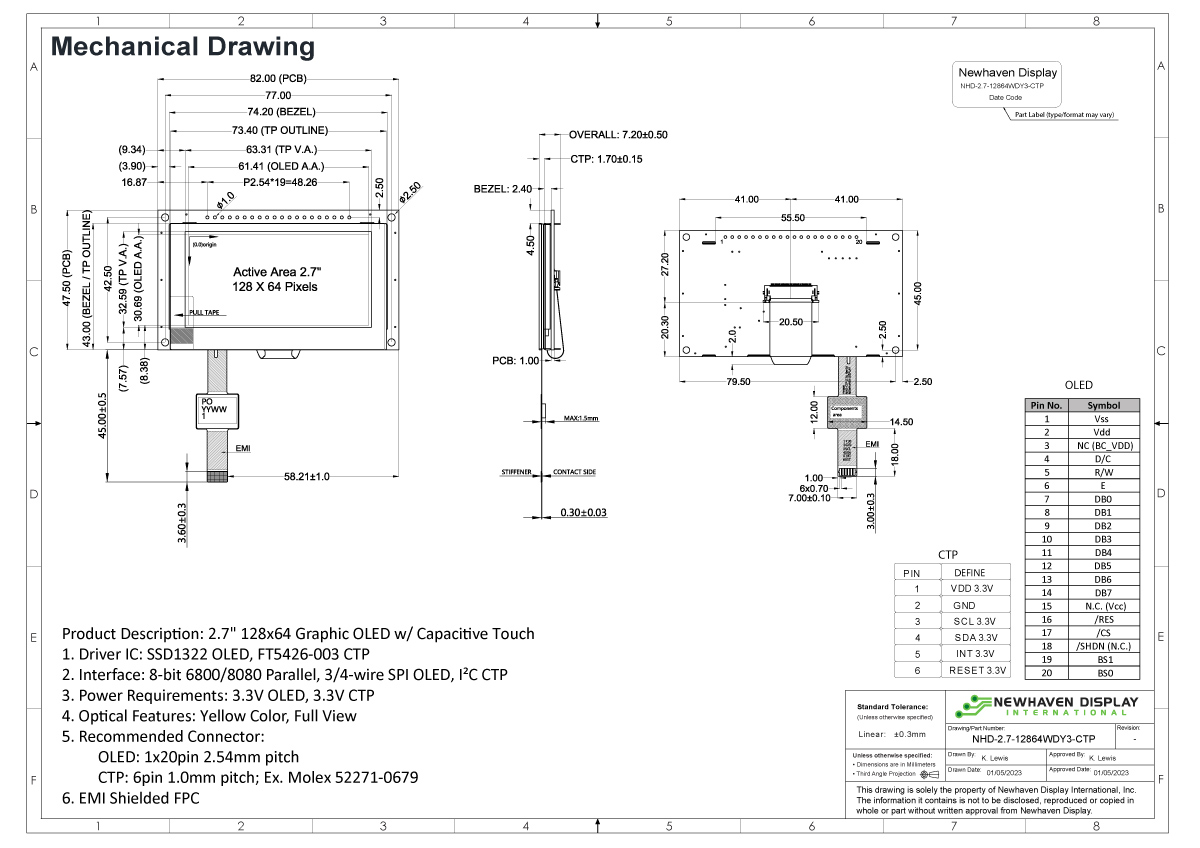

| Outline L x W x H | 82mm x 47.5mm x 7.2mm |
| Viewing Area L x W | 63.31mm x 32.59mm |
| Active Area L x W | 61.41mm x 30.69mm |
| Supply Voltage | 3.3V |
| Interface | Serial / Parallel |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | SSD1322 |
| Connection Type | 1x20 Thru Hole with 2.54mm Pitch |
| Operating Temperature | -40° ~ -85°C |
| Storage Temperature | -40° ~ 85°C |
| Additions | Capacitive Touchscreen, EMI Shielding |
