4.3" IPS TFT display with intuitive resistive touch and sunlight-readable brightness.
Bring your projects to life with this 4.3" IPS TFT LCD, featuring 480x272 resolution and a 1,000-nit high-brightness LED backlight. The IPS technology ensures sharp images, vibrant colors, and full viewing angles, while the sunlight-readable backlight maintains visibility even in bright conditions. A 4-wire resistive touchscreen allows simple, intuitive interaction, perfect for interactive menus, control systems, or custom interfaces. Operating at 3.3V, this display balances performance and efficiency.
Designed for easy integration, this 4.3" TFT offers a 24-bit RGB interface and compatibility with various Arduino models. The 40-pin FFC (Flexible Flat Cable) connection simplifies setup, and the built-in SC7283 driver IC ensures smooth operation and accurate graphics rendering. RoHS compliant and built to strict safety standards, this display delivers reliable, high-quality visual performance for embedded applications.
NHD-4.3-480272EF-ASXP-T: Technical Specifications
| Size | 4.3" Diagonal |
|---|---|
| Resolution | 480x272 Pixels |
| Color | 24-Bit True Color |
| Display Type | Sunlight Readable IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | 4-Wire Resistive |

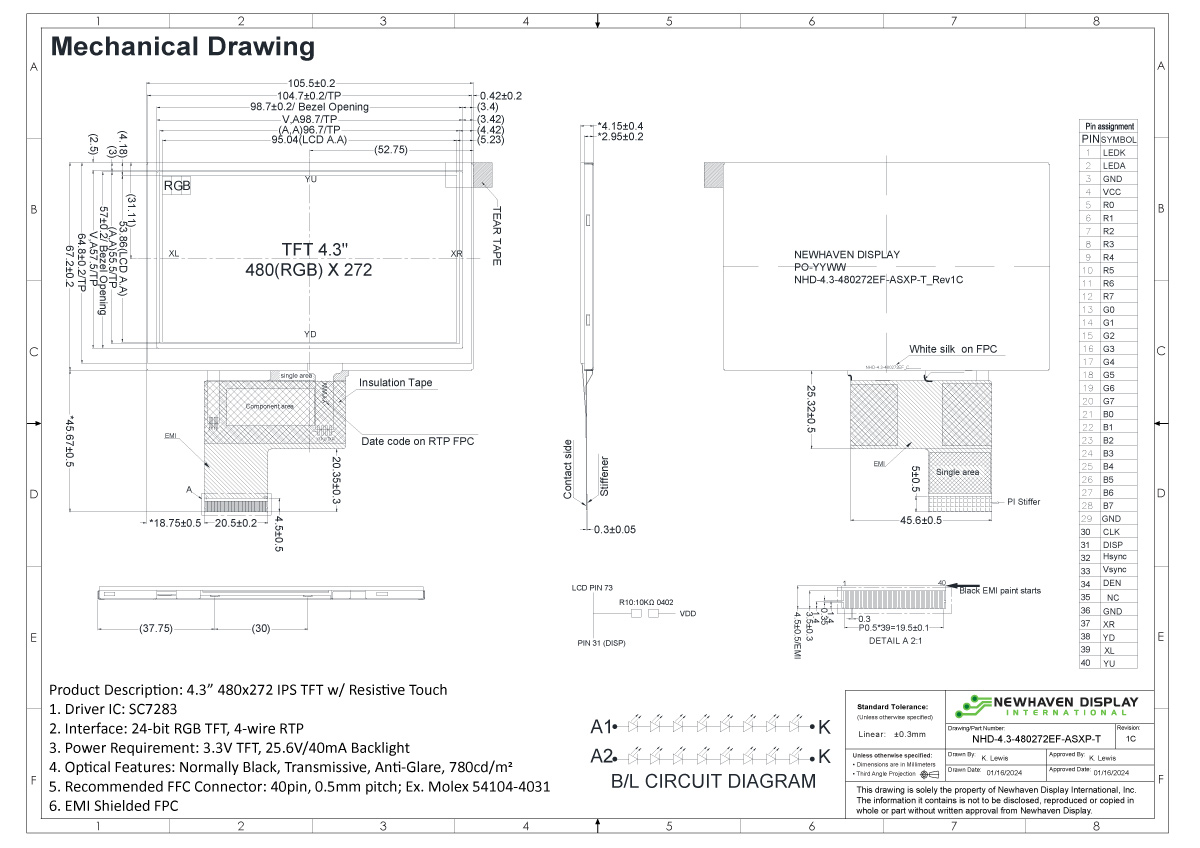

| Outline L x W x H | 105.5mm x 67.2mm x 4.15mm |
| Viewing Area L x W | 98.7mm x 56.2mm |
| Active Area L x W | 95.04mm x 53.86mm |
| Supply Voltage | 3.3V |
| Luminance | 1,000 Nits |
| Interface | 24-Bit RGB |
| Compatibility | Arduino and similar development boards |
| Controller Type | SC7283 |
| Connection Type | 40-Pin FFC |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | Yes |
