Sharp Sunlight Readable 480x480 Pixel IPS TFT Display with Capacitive Touch and EMI Shielding
The NHD-4.0-480480AF-ASXP-CTP is a fantastic choice for adding a unique IPS TFT LCD to your next project. Its square 4.0-inch screen has a 480x480 pixel resolution for sharp visuals that can be read from most directions due to its full viewing angles. The sunlight readable display has an average brightness of 850 cd/m2, built-in EMI shielding, and an operating temperature range of -20° to 70°C, ensuring that it can handle the most demanding environments.
With an ST7701SN controller using 24-bit Parallel RGB interfacing and an integrated 40-pin FPC cable with 0.5mm pitch, the display is easy to work with and compatible with Arduino-type development systems. It also features a capacitive touchscreen, allowing for more complex multi-touch inputs.
Using your own cover glass or overlay with our capacitive touchscreen displays? Talk to our engineering team about having us calibrate the touchscreen's sensitivity to maintain optimal performance. We can also work with you to customize and install cover glass so you don't have to.
NHD-4.0-480480AF-ASXP-CTP: Technical Specifications
| Size | 4.0" Diagonal |
|---|---|
| Display Format | 480x480 Pixels |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | 10-Point Capacitive |

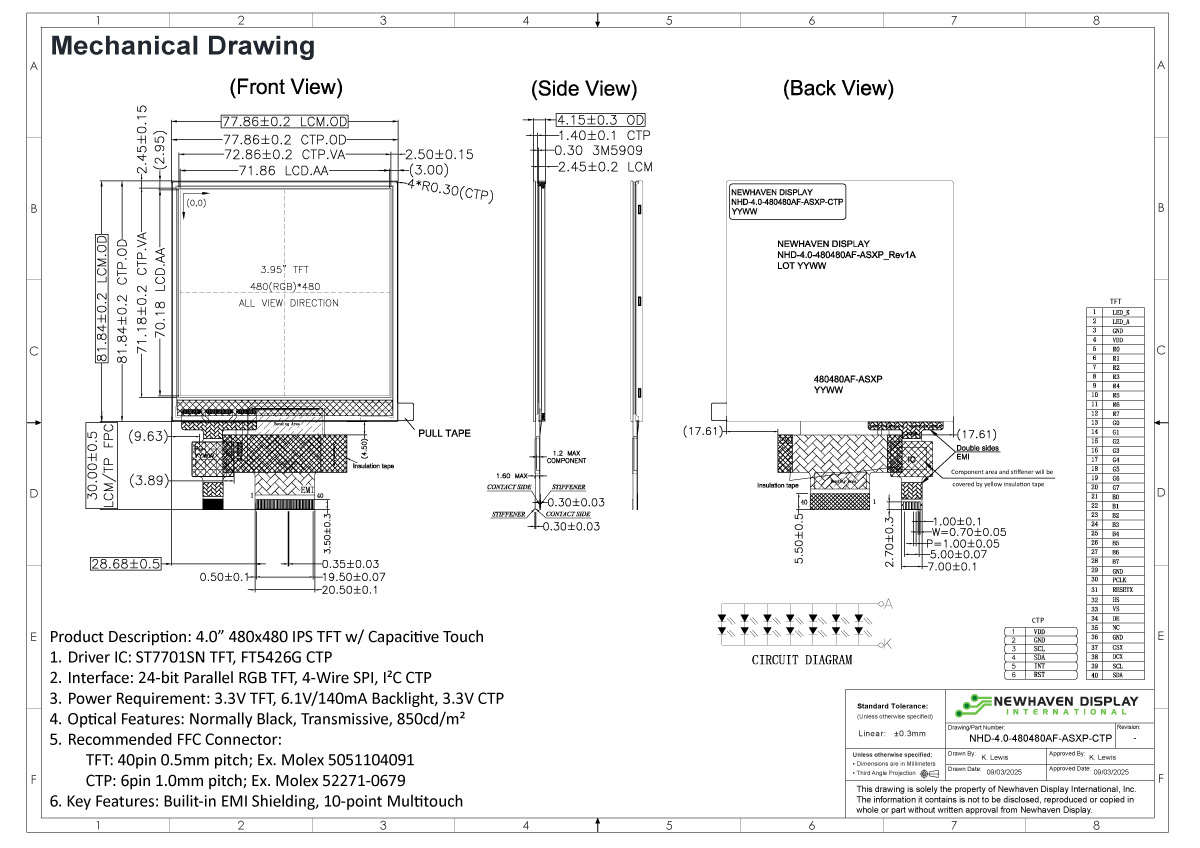

| Outline L x W x H | 77.86mm x 81.84mm x 4.15mm |
| Viewing Area L x W | 72.68mm x 71.18mm |
| Active Area L x W | 71.86mm x 70.18mm |
| Supply Voltage | 3.3V |
| Luminance | 850 cd/m2 |
| Interface | 24-Bit Parallel RGB |
| Controller Type | ST7701SN |
| Compatibility | Arduino and similar development boards |
| Connection Type | 40-Pin FPC with 0.5mm Pitch |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | Yes |
