Simple 8x2 STN (+) Yellow-Green Character LCD with No Backlight
The NHD-0208BZ-RN-YBW-33V is the perfect fit for your next project. It has a STN (+) Yellow-Green display with no backlight and a reflective screen that enhances visibility in well-lit spaces. With a wide 6:00 viewing angle, it's easy to read from different directions. The high-performance ST7066U controller and easy-to-use Parallel interface make Arduino and similar development board integrations simple-so you can spend more time building and less time troubleshooting.
This display runs on a low 3.3V supply, operates between -20° and 70° Celsius, and is RoHS compliant, making it environmentally friendly, even if the environment might not be friendly to it.
NHD-0208BZ-RN-YBW-33V: Technical Specifications
| Size | 2 Row | 8 Characters |
|---|---|
| Display Format | 8x2 |
| Total Characters | 16 |
| Display Type | STN (+) Yellow-Green |
| Display Mode | Reflective |
| Optimal View | 06:00 |

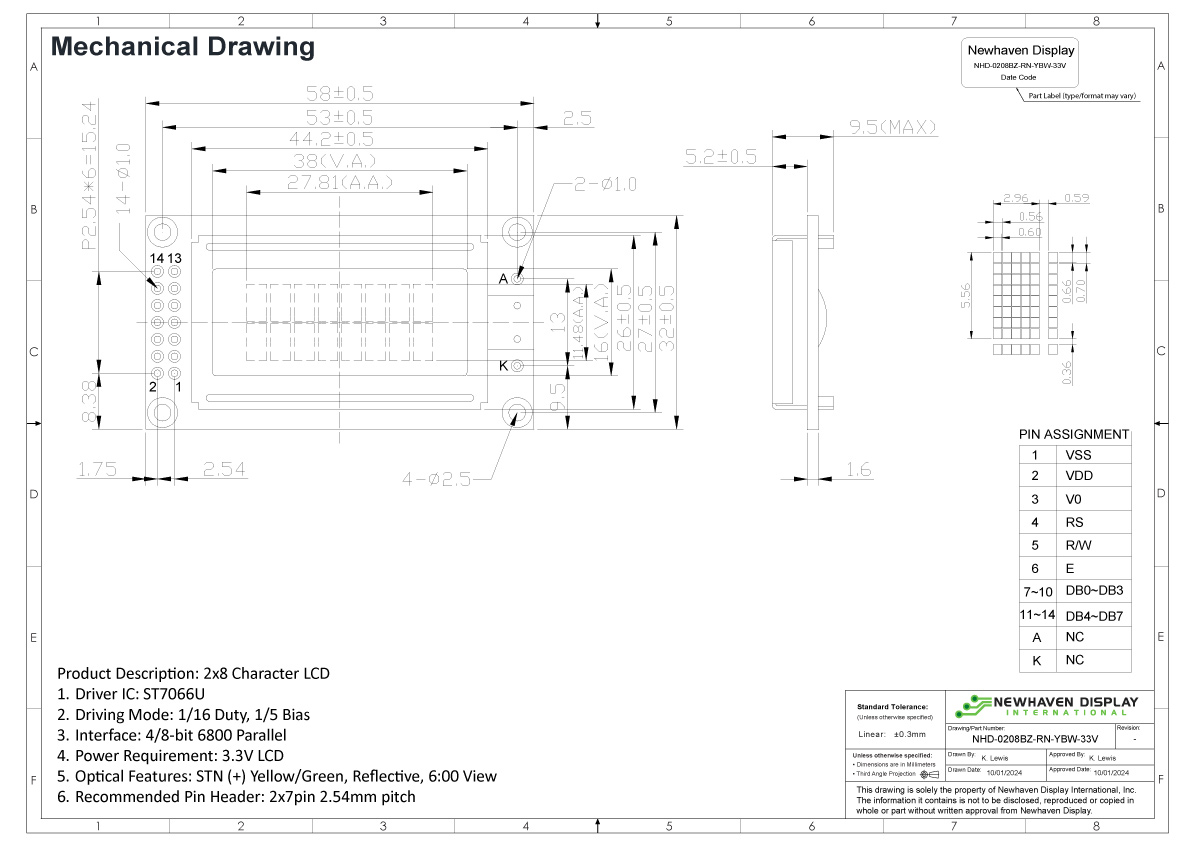

| Outline L x W x H | 58mm x 32mm x 9.5mm |
| Viewing Area L x W | 38mm x 16mm |
| Active Area L x W | 27.81mm x 11.48mm |
| Supply Voltage | 3.3V |
| Backlight | None |
| Interface | Parallel |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | ST7066U |
| Connection Type | 2x7 Thru Hole with 2.54mm Pitch |
| Operating Temperature | -20° ~ 70° C |
| Storage Temperature | -30° ~ 80° C |
