Slim 20x2 FSTN (+) Gray Chip on Glass Character LCD with White Backlight
Choose the NHD-C0220BiZ-FSW-FBW-3V3M for a strong display experience in your next build. It features a FSTN (+) Gray screen with a White backlight and transflective display technology, delivering reliable readability across lighting environments. A 6:00 optimal view angle ensures visibility from many perspectives. With the capable ST7036 controller and I2C interface, integration with Arduino and similar development boards is seamless-so you can stay focused on refining your design.
This display is a chip-on-glass design, which allows you more flexibility in incorporating it into your design because it is not bonded to a PCB. It runs on a low 3.3V supply, operates between -20° and 70° Celsius, and is RoHS compliant, making it environmentally friendly, even if the environment might not be friendly to it.
NHD-C0220BiZ-FSW-FBW-3V3M: Technical Specifications
| Size | 2 Row | 20 Characters |
|---|---|
| Display Format | 20x2 |
| Total Characters | 40 |
| Display Type | FSTN (+) Gray |
| Display Mode | Transflective |
| Optimal View | 06:00 |

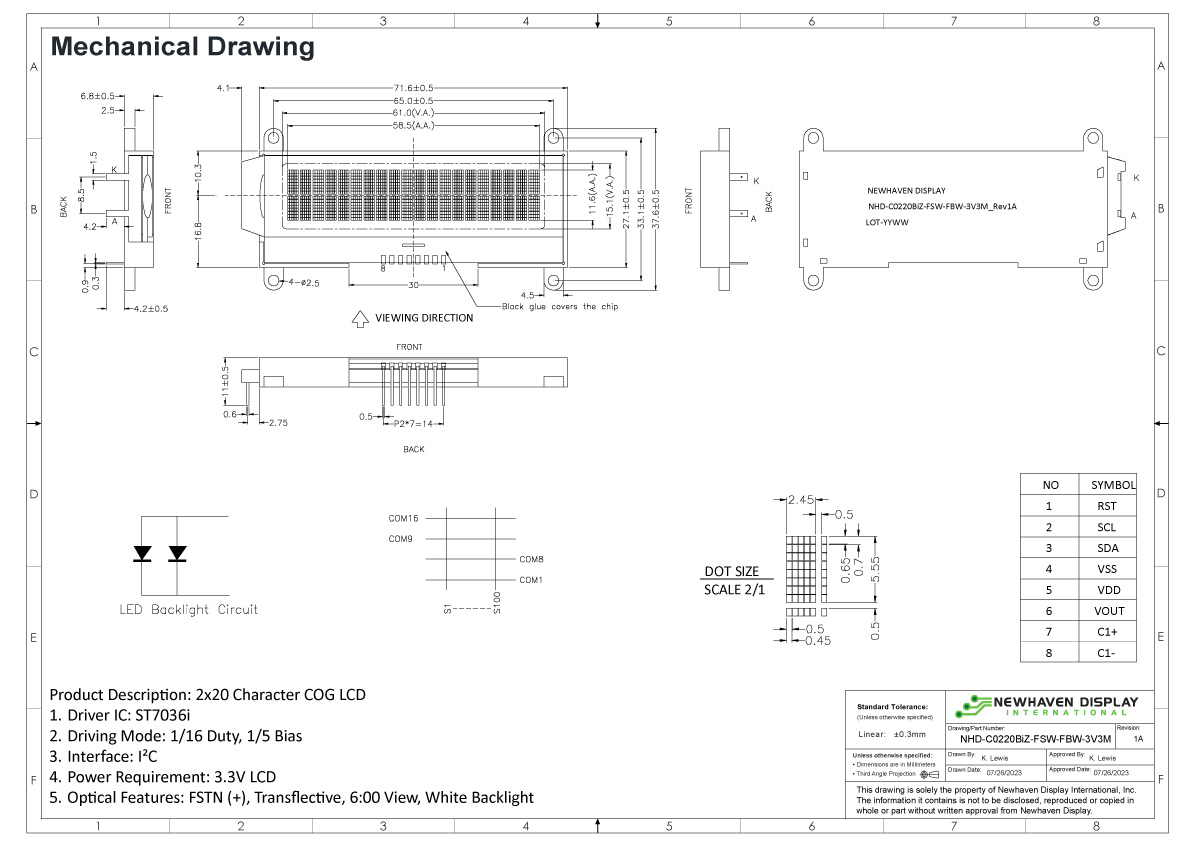

| Outline L x W x H | 71.6mm x 37.6mm x 11mm |
| Viewing Area L x W | 61mm x 15.1mm |
| Active Area L x W | 58.5mm x 11.6mm |
| Supply Voltage | 3.3V |
| Backlight | White |
| Interface | I2C |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | ST7036 |
| Connection Type | 1x8 Pins with 2mm Pitch |
| Operating Temperature | -20° ~ 70° C |
| Storage Temperature | -30° ~ 80° C |
| Additions | Mounting Holes |
