Colori brillanti e tocco intuitivo in un display IPS TFT compatto.
This 2.4" IPS TFT display offers 240x320 resolution, full viewing angles, and vibrant color accuracy with high contrast-ideal for interactive applications that demand clarity and consistency. The bright, crisp visuals are powered by IPS technology and a 3.3V supply for energy-efficient performance.
A built-in capacitive touchscreen supports 5-point multi-touch input via I2C, with enhanced responsiveness and gesture control powered by the FocalTech controller. The cover glass adds durability for everyday use in control panels, smart devices, and industrial systems.

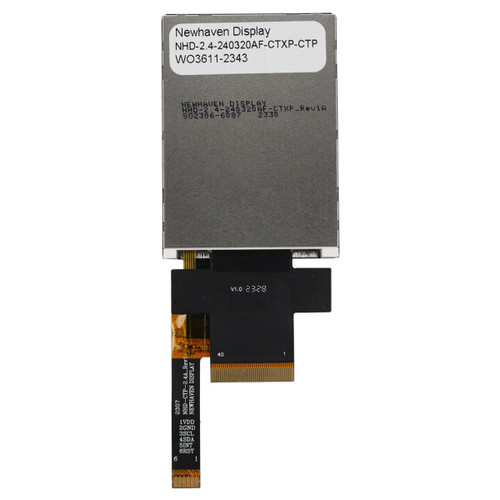

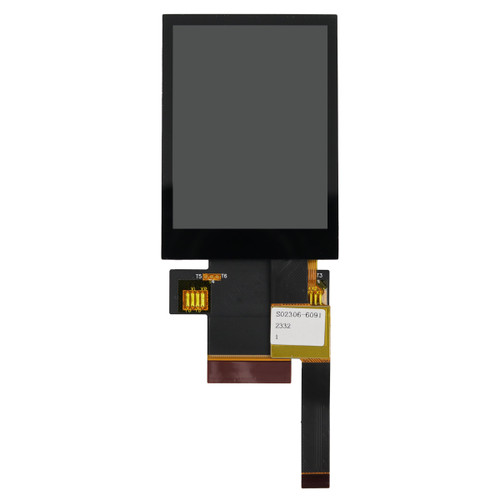

Choose between an 8/16-bit parallel interface or 3-wire SPI to fit your system requirements. This display integrates easily with Arduino and similar platforms using a 40-pin FFC and 6-pin touch connector. EMI shielding is included for added signal protection in high-interference environments.
With the same mechanical footprint as standard TN models, it's drop-in compatible with existing housings and overlays. RoHS compliant and ready for deployment across a range of commercial and industrial applications.
Looking for a streamlined development or prototyping solution using this display? Check out the NHD-2.4C-CTXP-BREAKOUT for an easy plug-and-play package with expanded functionality.
Using your own cover glass or overlay with our capacitive touchscreen displays? Talk to our engineering team about having us calibrate the touchscreen's sensitivity to maintain optimal performance. We can also work with you to customize and install cover glass so you don't have to.
NHD-2.4-240320AF-CTXP-CTP: Specifiche tecniche
| Size | 2.4" Diagonal |
|---|---|
| Resolution | 240x320 Pixels |
| Colors | 262K |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | Capacitive + Cover Glass |
| Outline L x W x H | 42.8mm x 59.91mm x 4.13mm |
| Viewing Area L x W | 37.72mm x 49.96mm |
| Active Area L x W | 36.72mm x 48.96mm |
| Supply Voltage | 3.3V |
| Luminance | 298 Nits |
| Interface | 8-bit/16-bit 8080-II Parallel or 3-wire SPI |
| Compatibility | Arduino or similar development boards |
| Display Controller Type | ST7789VI |
| CTP Controller Type | FT5426 |
| Connection Type | 40-Pin FFC (CTP: 6-Pin FFC) |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | Yes |
