Space-Saving 128x65 Pixel STN+ Gray Graphic LCD with White Backlight
Perfect for your next project, the NHD-C12865AR-FSW-GBW provides a clear way to show data and simple monochrome graphics. It features a 128x65 pixel STN+ Gray LCD panel with White backlight and a transflective screen for excellent visibility. The 6:00 optimal viewing angle keeps information clearly legible from multiple directions. With a ST7565R controller and Serial/Parallel interface, it is easy to connect to Arduino and similar development boards.
The display runs on low 3.3V power for more efficient applications. It operates between -20° and 70° C, making it dependable in extreme conditions, and it is RoHS compliant for environmental safety.
NHD-C12865AR-FSW-GBW: Technical Specifications
| Display Format | 128x65 Pixels |
|---|---|
| Display Type | STN (+) Gray |
| Display Mode | Transflective |
| Optimal View | 06:00 |

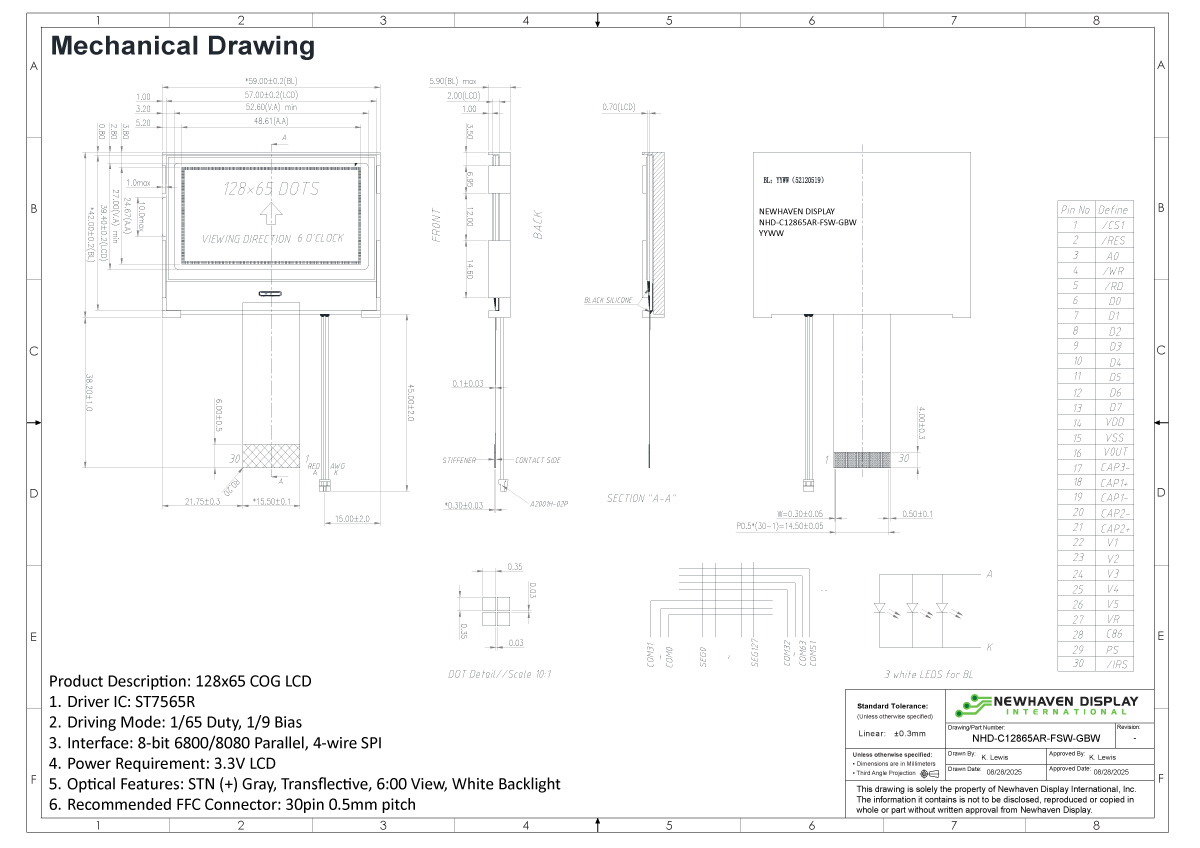

| Outline L x W x H | 59mm x 42mm x 5.9mm |
| Viewing Area L x W | 52.6mm x 27mm |
| Active Area L x W | 48.61mm x 24.67mm |
| Supply Voltage | 3.3V |
| Backlight | White |
| Interface | Serial / Parallel |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | ST7565R |
| Connection Type | 30-Pin FFC with 0.50mm Pitch |
| Operating Temperature | -20° ~ 70° C |
| Storage Temperature | -30° ~ 80° C |
