Versatile Full Color 1.27" Graphic OLED Module
With a built-in MicroSD card reader, the NHD-1.27-12896ASC3 is an excellent choice for adding additional functionality to your project while streamlining your design process. The 128x96 pixel display can produce 262K colors for superior image quality, and it's great for use with Arduino and similar development boards because its SSD1351 controller provides seamless integration using a Serial interface.
It's easy to work with because of its built-in logic level shifting, allowing it to operate between 3.3 and 5.0 volts, and it can function in temperatures ranging from -30° to 70°C. The display is also RoHS compliant for environmental safety.
NHD-1.27-12896ASC3: Technical Specifications
| Size | 1.27" Diagonal |
|---|---|
| Display Format | 128x96 Pixels |
| Display Type | Graphic OLED Module |
| Display Color | Full Color; 262K Colors |

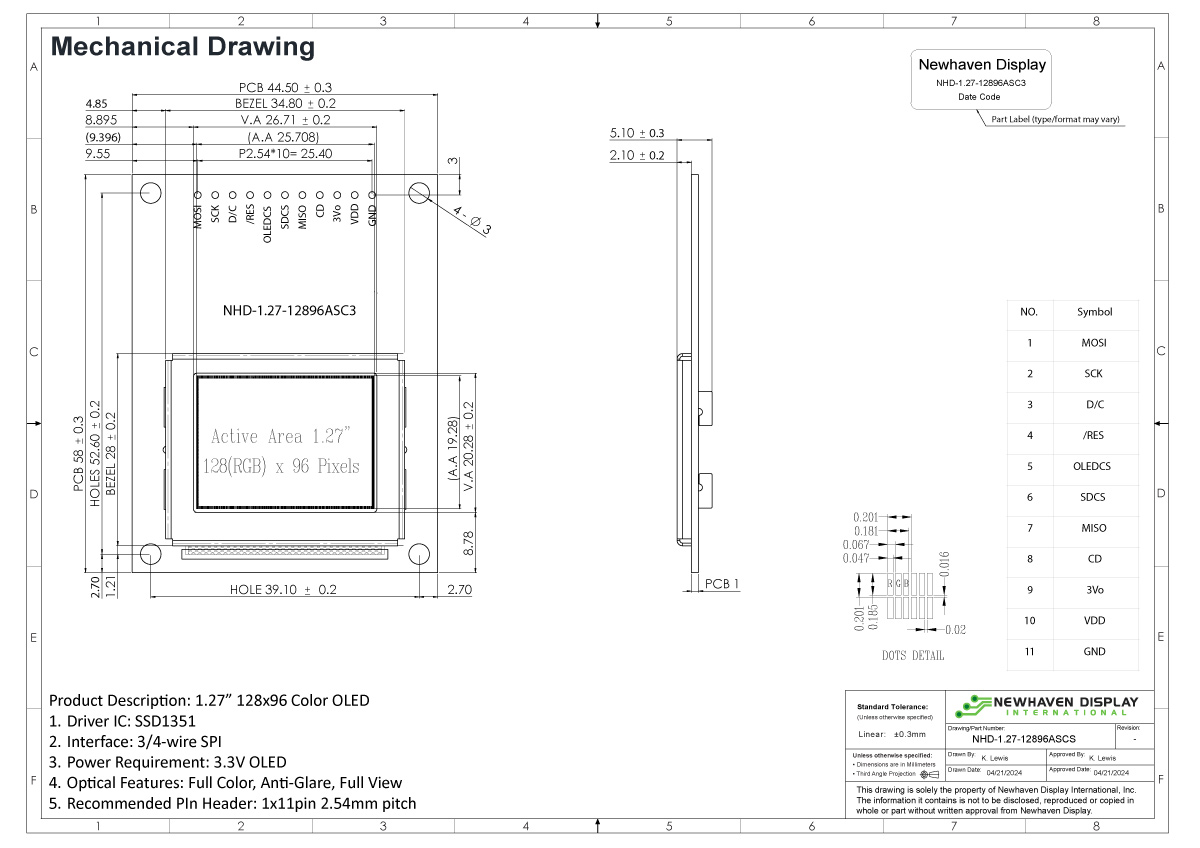

| Outline L x W x H | 44.5mm x 58mm x 5.1mm |
| Viewing Area L x W | 26.71mm x 20.28mm |
| Active Area L x W | 25.708mm x 19.28mm |
| Supply Voltage | 3.3V to 5.0V |
| Interface | Serial |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | SSD1351 |
| Connection Type | 1x11 Thru Hole with 2.54mm Pitch |
| Operating Temperature | -30° ~ 70°C |
| Storage Temperature | -40° ~ 80°C |
| Additions | MicroSD Card Reader |
