Streamlined Development Board with 2.4" Capacitive Touch IPS TFT Display
The NHD-2.4C-CTXP-BREAKOUT development board is built to provide a seamless IPS TFT interfacing package. With an integrated 2.4" NHD-2.4-240320AF-CTXP-CTP display, the board builds on an already capable platform by adding EMI Shielding for added resilience, a built-in backlight driver for simplified power routing, and mounting holes for easy installation. It also features 3.3V operation, straightforward parallel or SPI interfacing, and a microSD card slot for expanded system storage. This module is an excellent choice for prototyping and design projects that use Arduino or similar boards and need a capacitive touchscreen for advanced user input.
NHD-2.4C-CTXP-BREAKOUT: Technical Specifications
| Product Type | TFT Breakout Module |
|---|---|
| Integrated Display | NHD-2.4-240320AF-CTXP-CTP |
| Display Format | 240x320 Pixels |
| Display Color | 262K Colors |

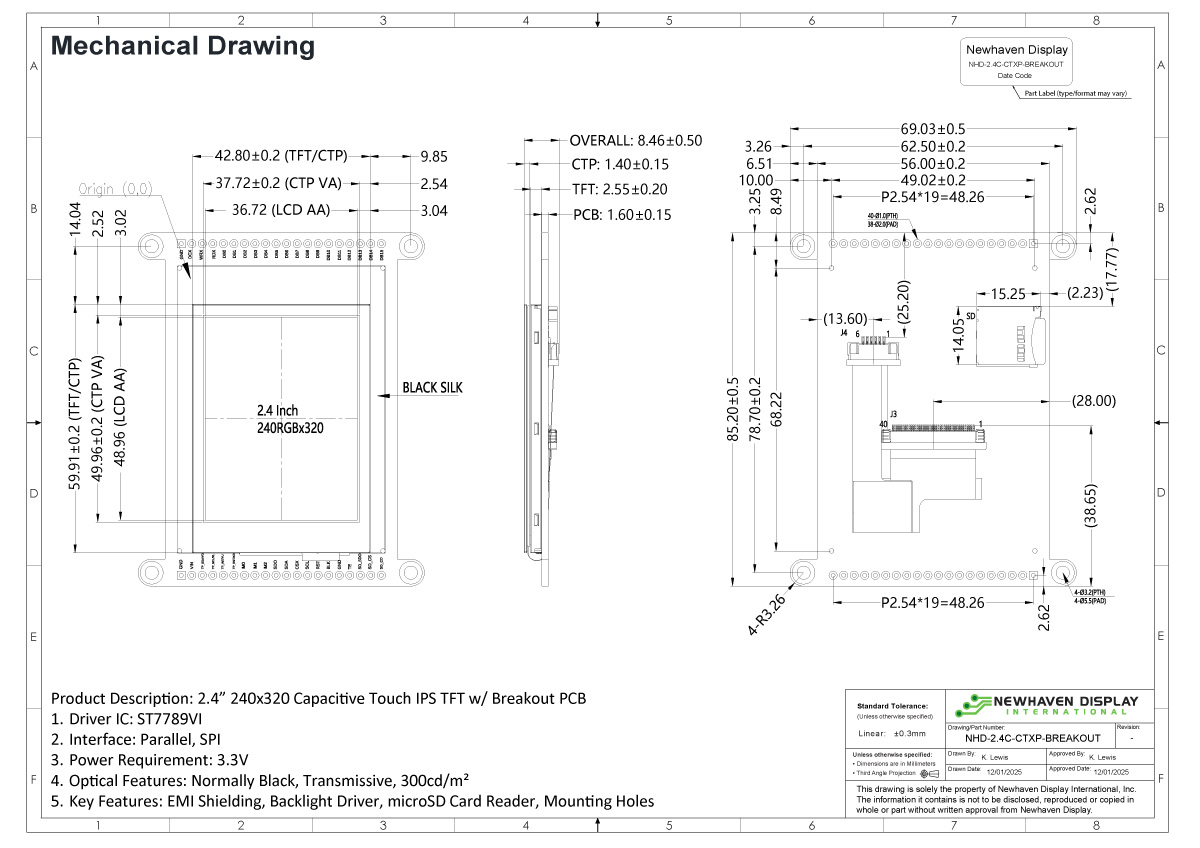

| Outline L x W x H | 85.2mm x 69.03mm x 8.46mm |
| Viewing Area L x W | 37.72mm x 49.96mm |
| Active Area L x W | 36.72mm x 48.96mm |
| Touchscreen | Capacitive + Cover Glass |
| Luminance | 300 Nits |
| Supply Voltage | 3.3V |
| Interface | Parallel / SPI |
| Controller Type | ST7789VI |
| Connection Type | Two 1x20-Pin Thru-Hole with 2.54mm Pitch |
| Compatibility | Arduino and Similar Development Boards |
| Operating Temperature | -20° to 70°C |
| Storage Temperature | -30° to 80°C |
| Built-In Mounting | 3.2mm Mounting Holes |
| Built-In EMI Shielding | Yes |
| Additions | microSD Card Reader, Integrated Backlight Driver, Pull-Up Resistors |
