High resolution 4.3" IPS TFT display with bright, high-contrast visuals for non-touch applications
Deliver crisp, vibrant visuals with this 4.3" IPS TFT LCD featuring 800x480 resolution and an 850-nit high-brightness LED backlight. Enjoy superior color accuracy, consistent image quality, and full viewing angles, even in direct sunlight. While this display does not include touch functionality, its high-quality visuals and 3.3V power supply make it ideal for projects that demand striking graphical output without a touchscreen.
Designed for easy integration, this 4.3" IPS display offers a 24-bit RGB interface and broad compatibility with Arduino boards. The 40-pin FFC (Flexible Flat Cable) connection ensures a simple, reliable setup, while the built-in EK9716B driver IC guarantees smooth operation and accurate rendering. RoHS compliant and built to rigorous safety and environmental standards, this display combines premium performance with dependable usability for embedded projects.

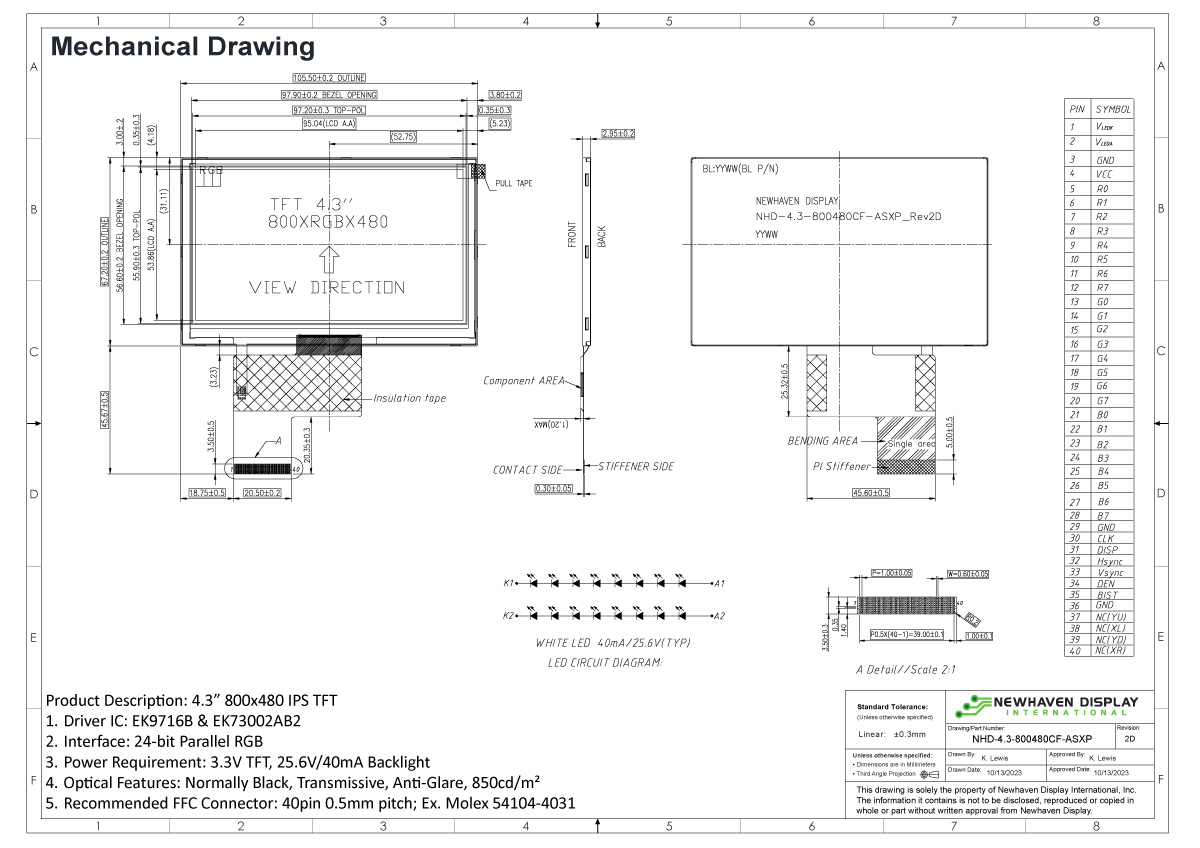

NHD-4.3-800480CF-ASXP: Technical Specifications
| Size | 4.3" Diagonal |
|---|---|
| Resolution | 800x480 Pixels |
| Color | 24-Bit True Color |
| Display Type | Sunlight Readable IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | None |
| Outline L x W x H | 105.5mm x 67.2mm x 2.95mm |
| Viewing Area L x W | 97.2mm x 55.9mm |
| Active Area L x W | 95.04mm x 53.86mm |
| Supply Voltage | 3.3V |
| Luminance | 850 Nits |
| Interface | 24-Bit RGB |
| Compatibility | Arduino and similar development boards |
| Controller Type | EK9716B |
| Connection Type | 40-Pin FFC |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | No |
