Square sunlight readable 480x480 pixel IPS TFT display with MIPI DSI Interface and EMI Shielding
The NHD-4.0-480480AF-MSXP is a great solution for adding a distinctive IPS TFT LCD to your next design. Its 4.0-inch square screen features a 480 x 480 resolution that delivers sharp, detailed visuals, while full viewing angles allow the content to be seen clearly from most directions. Offering 1000 nits brightness, EMI shielding, and a -20° to 70°C operating temperature range, this sunlight-readable display performs reliably in tough environments.
Using an ST7701SN controller with 2-lane MIPI DSI interfacing and an integrated 40-pin FPC cable at 0.5 mm pitch, the module supports easy development and is compatible with Arduino-type platforms.
NHD-4.0-480480AF-MSXP: Technical Specifications
| Size | 4.0" Diagonal |
|---|---|
| Display Format | 480x480 Pixels |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | None |

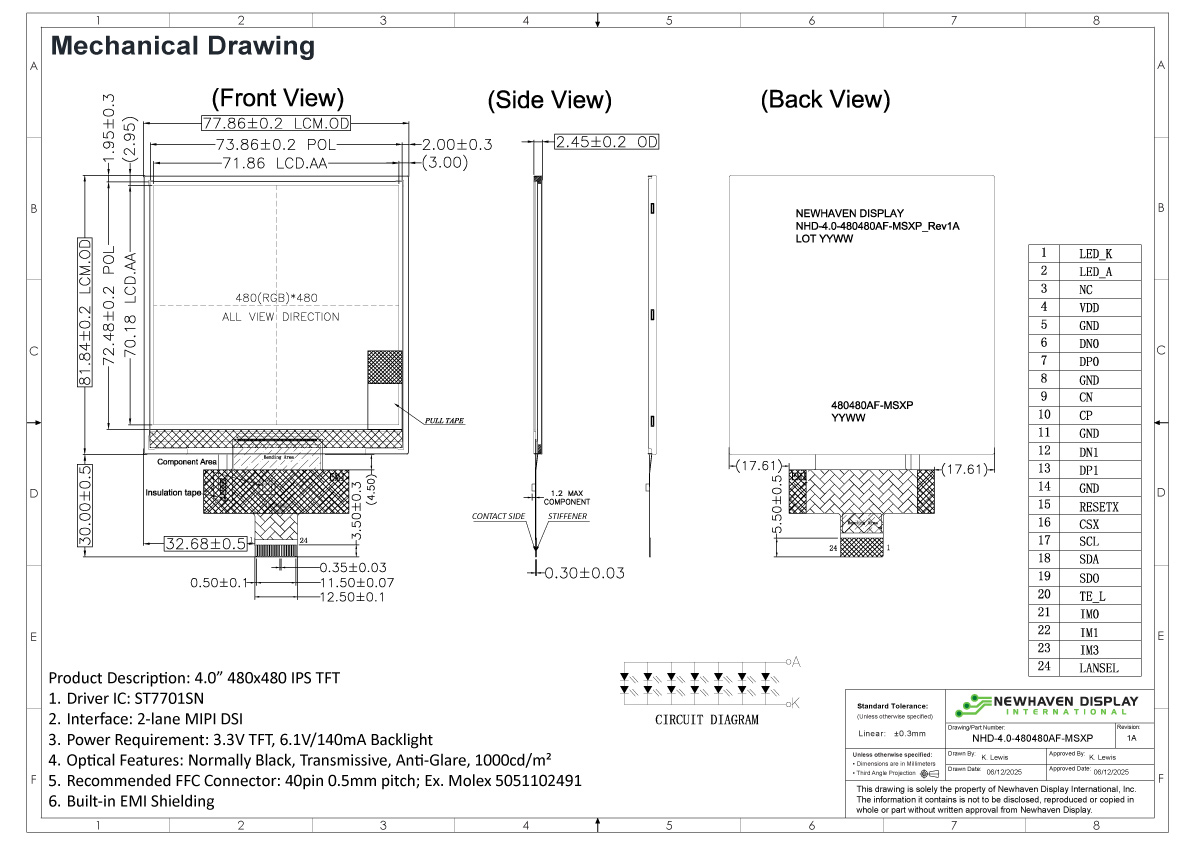

| Outline L x W x H | 77.86mm x 81.84mm x 2.45mm |
| Viewing Area L x W | 73.86mm x 72.48mm |
| Active Area L x W | 71.86mm x 70.18mm |
| Supply Voltage | 3.3V |
| Luminance | 1000 Nits |
| Interface | 2-Lane MIPI DSI |
| Controller Type | ST7701SN |
| Compatibility | Arduino and similar development boards |
| Connection Type | 40-Pin FPC with 0.5mm Pitch |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | Yes |
