COG 4x20 Character LCD with STN-Blue Negative Display with White Backlight and 8.01mm Character Height
Choose the NHD-C0420BZ-NSW-BBW-3V3 for a vibrant blue monochrome display with 4 lines of 20 characters. This transmissive COG LCD display features 8.01 mm character height and is STN negative blue with a white backlight. Its 6:00 optimal viewing angle also provides clear visibility from below, looking up at the display. With the built-in IST3602 controller and selectable 8-bit 6800/8080 Parallel, 3/4-wire SPI, or I2C interface, integration with Arduino or similar development boards is easy.
The slim chip-on-glass design allows you more flexibility because the IC bonded to the glass and not integrated in a PCB. It runs on a low 3.3V supply, operates between a wide temperature of -20° and 70° Celsius. This display is RoHS compliant and adhere to strict environmental and safety standards.
NHD-C0420BZ-NSW-BBW-3V3: Technical Specifications
| Size | 4 Rows | 20 Characters |
|---|---|
| Display Format | 4x20 |
| Total Characters | 80 |
| Display Type | STN (-) Blue |
| Display Mode | Transmissive |
| Optimal View | 6:00 |

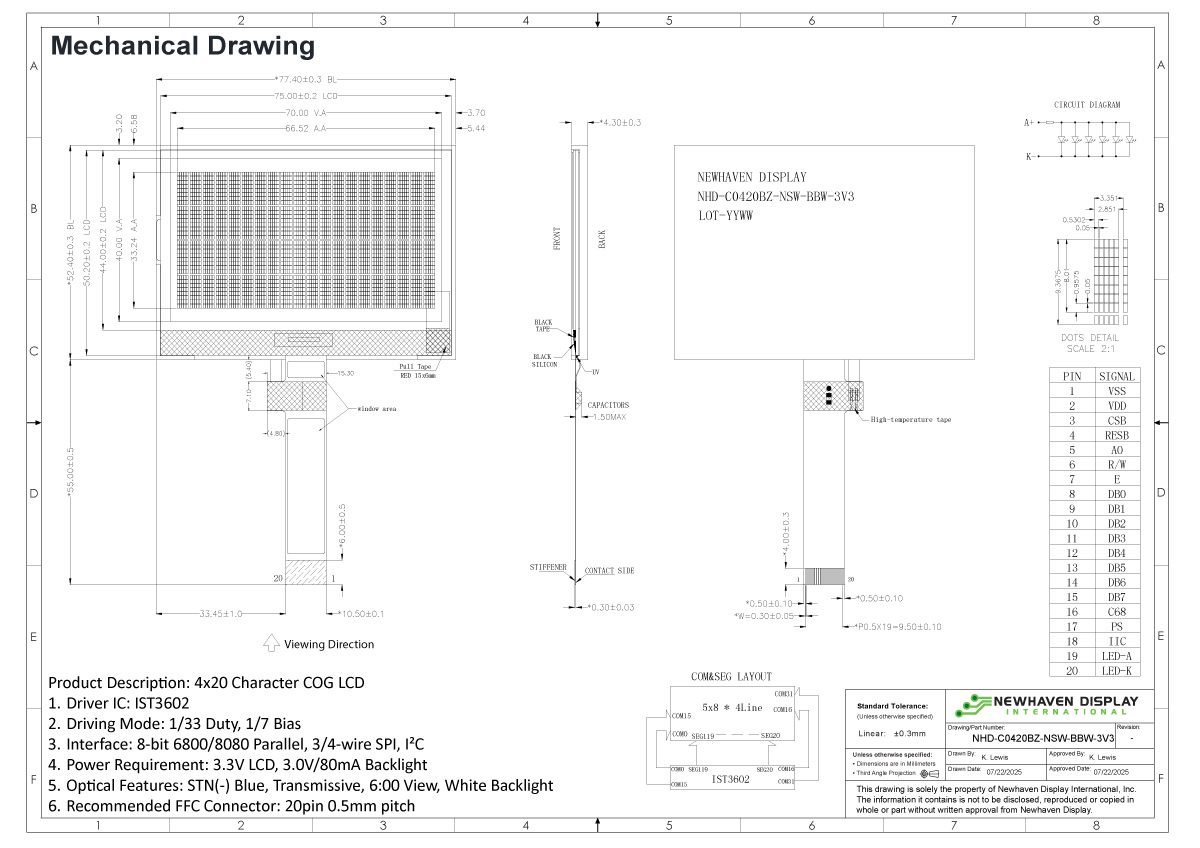

| Outline L x W x H | 77.4mm x 52.4mm x 4.3mm |
| Viewing Area L x W | 70.0mm x 40.0mm |
| Active Area L x W | 66.52mm x 33.24mm |
| Supply Voltage | 3.3V |
| Backlight | White |
| Interface | Parallel / SPI / I2C |
| Compatibility | Arduino and Similar Development Boards |
| Controller Type | IST3602 |
| Connection Type | 1x20 Pins with 0.5mm Pitch |
| Operating Temperature | -20° ~ 70° C |
| Storage Temperature | -30° ~ 80° C |
