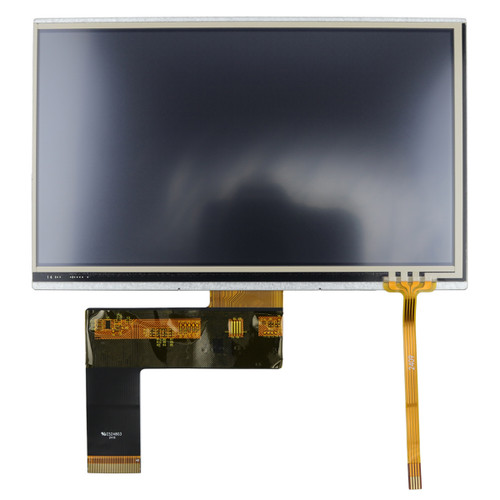

NHD-7.0-800480AF-ASXP-T | 7" IPS LCD with 800x480 Pixels | High Brightness Display | Resistive Touchscreen
This 7" IPS TFT LCD has a resolution of 800x480 pixels, EMI shielding, and a high brightness LED backlight with 780 nits. The display offers stunning sharpness, superior color reproduction, better image consistency, and high contrast with full viewing angles due to the IPS technology built into this Liquid Crystal Display. The high brightness backlight and 3M brightness enhancement film (BEF) allow this TFT to be sunlight readable in bright conditions including direct sun. This transmissive LCD boasts impressive quality and brightness with only a 3.3 voltage power supply. The 4-wire resistive touchscreen makes it an excellent choice for projects that desire high-end visual output with simple touch functionality. The touchscreen will allow users to interact more intuitively and create opportunities for interactive applications such as medical devices, kiosks, industrial, and many others.
7" Resistive Touchscreen LCD with RGB Interface and Compatible with Arduino
This 7 inch TFT LCD also features a 24-bit parallel RGB interface and compatibility with various Arduino models. The LCD and touchscreen feature a FFC (Flexible Flat Cable) connection style, ensuring a hassle-free electrical connection. Powered by a built-in ST7277 driver, this TFT display delivers exceptional performance and reliability. The driver optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
Product Overview
7" TFT LCD Product Specifications
| Size: | 7" diagonal |
| Display Format: | 24-bit true color; 800x480 pixels |
| Display Type: | IPS |
| Display Mode: | Transmissive |
| Optimal View: | Full view |
| Touchscreen: | Resistive |
| Outline L x W x H: | 165mm x 104mm x 4.7mm |
| Viewing Area L x W: | 156.68mm x 88.519mm |
| Active Area L x W: | 153.84mm x 85.63mm |
| Supply Voltage: | 3.3V |
| Luminance: | 780 nits |
| Interface: | RGB |
| Controller Type: | ST7277 |
| Connection Type: | 40-pin FFC |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |
| Built-in Mounting: | None |
| Added Feature: | EMI shielding, 3M brightness enhancement film |
7" TFT LCD Custom Solutions
LCD Cable Customization
We offer various cables, connectors, and pinout customizations for LCD IPS display technology. We have over 20 years of experience customizing LCDs for customers worldwide across different industries.
7" Touchscreen Add-on
Enhance your user experience with a 7" capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
LCD Interface Customization
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals.
7" LCD Cover Glass
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
Quality Standards
At Newhaven Display we strive every day to provide our customers with the highest quality products. This means Quality, Engineering, and Manufacturing teams are aligned to exceed your expectations.
Our customers should expect their products to meet or exceed the following standards:
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
