20x4 Character LCD | STN+ Gray Serial Display with Yellow/Green Backlight

(1 review) Write a Review
Model:
NHD-0420D3Z-FL-GBW-V3
Size:
4 Rows | 20 Characters
Backlight Color:
Yellow/Green
Display Type/Mode:
STN (+) Gray, Transflective
Controller/Driver:
PIC16F690
Resources:

Request volume pricing

Save with our volume discounts. Request special pricing for larger quantities. Get volume pricing.

$26.45
  • 20x4 Character LCD Serial interface STN Gray with Yellow/Green Backlight Display Front On
  • 20x4 Character LCD Serial interface STN Gray with Yellow/Green Backlight Display Front Off

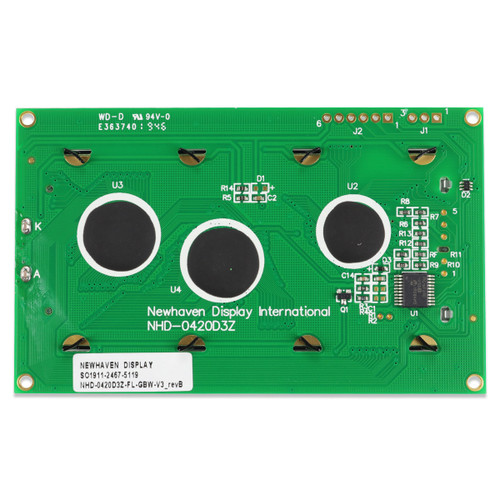

  • 20x4 Character LCD Serial interface STN Gray with Yellow/Green Backlight Display PCB Back
  • Drawing Specification for NHD-0420D3Z-FL-GBW-V3

NHD-0420D3Z-FL-GBW-V3 | 20x4 Character Display | SPI, I2C, or RS232 Interface | Transflective LCD | Yellow/Green Backlight | STN Gray Background

This character LCD is 20 characters on 4 rows and will show dark pixels on a bright yellow/green background while the yellow-green backlight is powered on. With the backlight off, this display shows blue characters on a gray background due to the STN positive gray display technology. This transflective LCD Display has an optimal view of 6:00 and is visible with ambient light or in bright light environments with the use of the yellow/green LED backlight. It operates with a 5V supply voltage and withstands a wide temperature range, operating in temps as low as -20°C and up to 70°C.

Yellow-Green Monochrome LCD with Serial Interface | Compatible with Arduino

This monochrome LCD display has a built-in PIC 16F690 controller and user selectable interface options including SPI, I2C, or RS232 (TTL) interface. This guarantees compatibility with a range of interfaces and development boards, including Arduino, making it a convenient choice for DIY electronics projects and educational purposes. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

LCD Product Specifications

Number of Characters: 80
Display Format: 20x4
Display Type: STN (+) Gray
Display Mode: Transflective
Outline L x W x H: 98.0mm x 60.0mm x 13.5mm
Viewing Area L x W: 76.0mm x 25.2mm
Active Area L x W: 70.4mm x 20.8mm
Supply Voltage: 5.0V
Backlight: Yellow/Green
Interface: Serial SPI, I2C, or RS232 (TTL)
Compatibility: Arduino and similar development boards
Controller Type: PIC 16F690
Connection Type: 2.54mm pitch Thru pins
Operating Temperature: -20°C ~ 70°C
Storage Temperature: -30°C ~ 80°C
