Sharp Sunlight Readable 480x480 Pixel IPS TFT Display with Capacitive Touch, MIPI DSI Interface, and EMI Shielding
The NHD-4.0-480480AF-MSXP-CTP is an excellent option for integrating a unique IPS TFT LCD into your next project. Its 4.0-inch square display offers a 480 x 480 pixel resolution for crisp, detailed visuals, with full viewing angles that keep the screen readable from most directions. With an average brightness of 850 cd/m², built-in EMI shielding, and a -20° to 70°C operating range, this sunlight-readable display is designed to perform in demanding environments.
Driven by an ST7701SN controller using 2-lane MIPI DSI interfacing and equipped with an integrated 40-pin FPC cable featuring a 0.5 mm pitch, the display is simple to integrate and works well with Arduino-type development systems. Its capacitive touchscreen adds support for more advanced multi-touch interactions.
Using your own cover glass or overlay with our capacitive touchscreen displays? Talk to our engineering team about having us calibrate the touchscreen's sensitivity to maintain optimal performance. We can also work with you to customize and install cover glass so you don't have to.
NHD-4.0-480480AF-MSXP-CTP: Technical Specifications
| Size | 4.0" Diagonal |
|---|---|
| Display Format | 480x480 Pixels |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | 10-Point Capacitive |

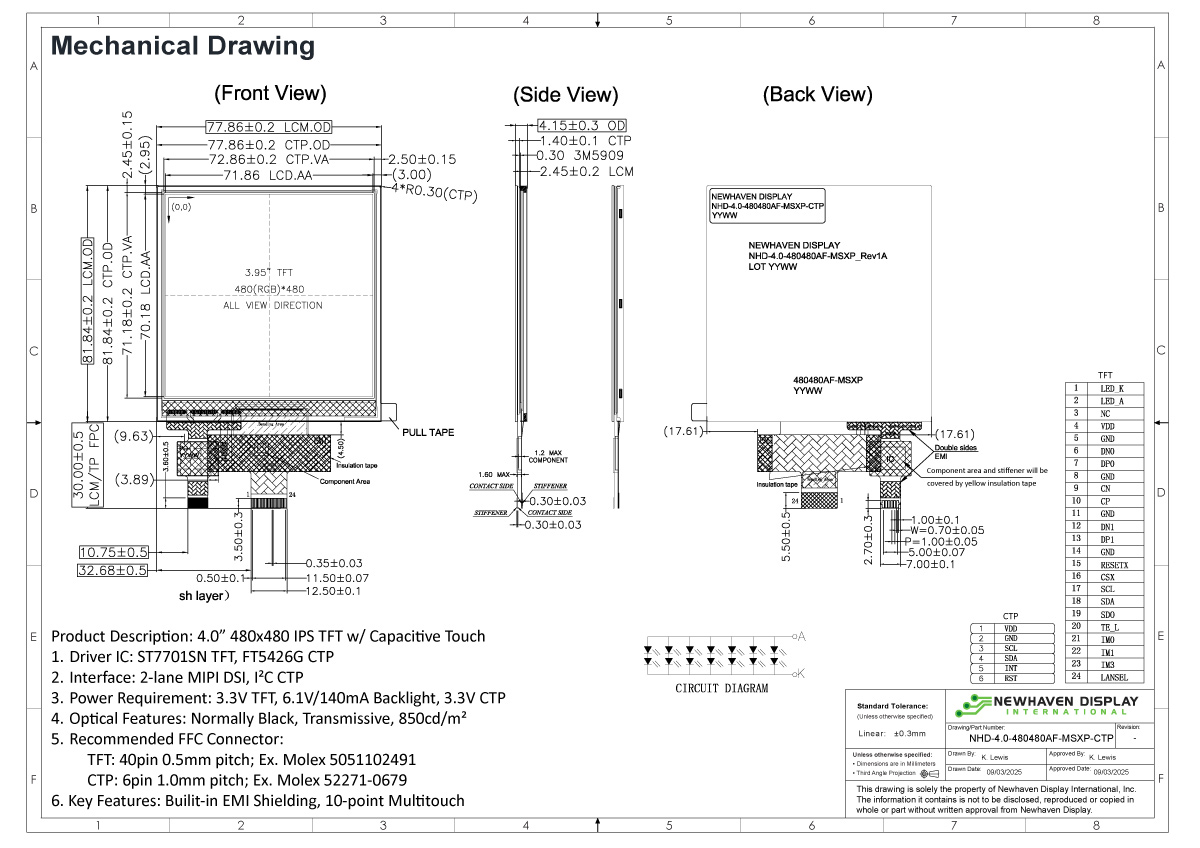

| Outline L x W x H | 77.86mm x 81.84mm x 4.15mm |
| Viewing Area L x W | 72.68mm x 71.18mm |
| Active Area L x W | 71.86mm x 70.18mm |
| Supply Voltage | 3.3V |
| Luminance | 850 cd/m2 |
| Interface | 2-Lane MIPI DSI |
| Controller Type | ST7701SN |
| Compatibility | Arduino and similar development boards |
| Connection Type | 40-Pin FPC with 0.5mm Pitch |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | Yes |
