M0220MD-202MDAR1-3 | 2x20 Characters | 5x8 Dot Matrix | VFD Module | Green Color Illumination | PT6314 controller | M68 Parallel Interface
This 2x20 Vacuum Fluorescent Display illuminates bright green characters on a deep black background. The VFD technology is engineered to provide high contrast viewing with vivid characters, making it a great choice for applications where readability is essential. This display is also fully compatible with Arduino, which allows for easy connectability and a wider range of applications.

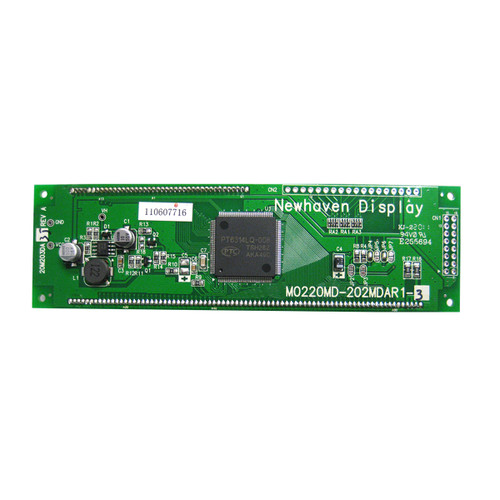

This VFD module comes complete with a built-in VF AC power supply, so only 5.0V is required to operate the display, as well as a built-in PT6314 controller. Designed to withstand extreme operating conditions, the dot matrix display utilizes a self-emitting fluorescent light, which allows the display to operate exceptionally when used within a temperature range from -40 to 85 degrees Celsius. It has 5x8 dots with cursor, M68 parallel interface, (serial interface selectable by onboard jumpers), and is RoHS compliant.
VFD Product Specifications
| Number of Characters: | 40 |
| Display Format: | 2x20 |
| Display Type: | Dot Matrix Module |
| Outline L x W x H: | 146mm x 43mm x 11.4mm |
| Character Size H x W: | 8.95mm x 3.85mm |
| Supply Voltage: | 5.0 V |
| Interface: | Serial / Parallel |
| Compatibility: | Arduino and similar development boards |
| Illumination Color: | Green |
| Controller Type: | PT6314 |
| Operating Temperature: | -40°C ~ 85°C |
| Storage Temperature: | -50°C ~ 95°C |
VFD Custom Solutions
Connector Customization
Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.
Quality Standards
At Newhaven Display we strive every day to provide our customers with the highest quality products. This means Quality, Engineering, and Manufacturing teams are aligned to exceed your expectations.
Our customers should expect their products to meet or exceed the following standards:
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
