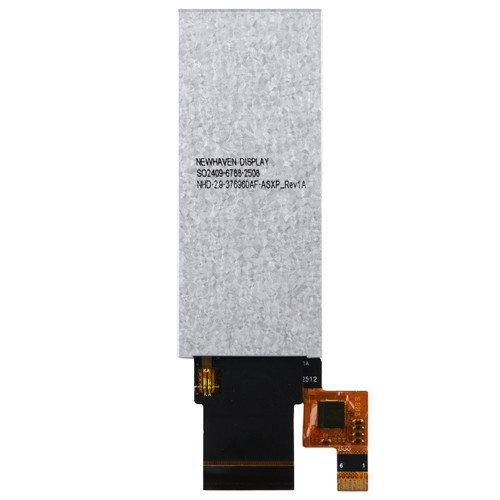

NHD-2.9-376960AF-ASXP-CTP | 2.9" Bar-Type IPS TFT | 376x960 Pixels | High Pixel Density | Sunlight Readable Display | Capacitive Touchscreen | Includes Cover Glass
This capacitive touchscreen 2.9” bar-type TFT combines compact design with responsive multi-touch capability, delivering an ideal solution for space-constrained systems and rack-mounted equipment. Boasting a a high-resolution of 376×960 pixels with 355 PPI pixel density and 16.7 million colors, this IPS screen provides crisp, vivid visuals with exceptional color accuracy and consistent image quality across wide viewing angles. Its high-brightness LED backlight of 892 nits ensures visibility in bright environments, including direct sunlight, while the anti-glare coating and high contrast ratio enhance readability in challenging lighting conditions. The 24-bit RGB interface and built-in ST7701SN controller provide reliable graphics and performance for a wide range of embedded applications, Arduino, Raspberry Pi and other development boards. Equipped with a projected capacitive touchscreen (PCAP) with built-in I2C interface and built-in cover glass enables intuitive touch gestures for HMIs, kiosks, medical devices, industrial controllers, and other interactive applications. The display supports portrait or landscape orientation, allowing designers flexibility for integration with a variety of embedded systems and electronics platforms. Its slim bar-type form factor fits within a 1U rack height and the built-in EMI shielding adds protection against electromagnetic interference. This capacitive touch TFT LCD delivers high-contrast, sunlight-readable visuals in a compact, interactive package. Our displays are all RoHS compliant and engineered to meet demanding industrial, medical, automotive, and consumer-grade requirements.
Product Overview
2.9" TFT LCD Product Specifications
| Sizet: | 2.9" diagonal |
| Display Format: | 16.7M colors; 376x960 pixels |
| Display Type: | IPS |
| Display Mode: | Transmissive |
| Optimal View: | Full view |
| Touchscreen: | Capacitive + Cover Glass |
| Outline L x W x H: | 32.6mm x 78.7mm x 3.78mm |
| Viewing Area L x W: | 27.51mm x 68.68mm |
| Active Area L x W: | 26.51mm x 67.68 |
| Supply Voltage: | 3.0V |
| Luminance: | 892 nits |
| Interface: | 24-bit RGB |
| Controller Type: | ST7701SN |
| Compatibility: | Arduino and similar development boards |
| Connection Type: | 40 pin FFC (CTP: 6 pin FFC) |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |
| Built-in Mounting: | None |
| Built-in EMI Shielding: | Yes |
