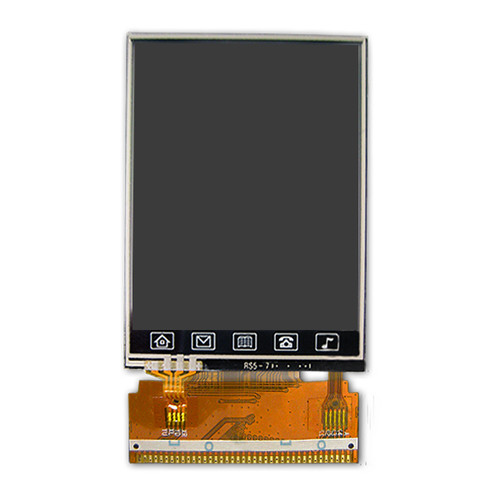

NHD-2.4-240320CF-CTXI#-FT | 2.4" Standard TN LCD | 240x320 Pixels | Resistive Touchscreen | Hot-bar Soldering Connection | Screen Printed Icons on Touch Panel | Discontinued EOL Product
This 240x320 resolution LCD TFT is a standard display with 8-bit/16-bit Parallel interface, offering 262K colors, 2.8V power supply, and a 12:00 optimal view. This Liquid Crystal Display has a built-in ILI9341 controller, hot-bar solder connection, has a 4-wire resistive touchscreen and screen printed icons featured on the touch panel. The display is compatible with Arduino and our displays are all RoHS compliant and adhere to strict environmental and safety standards. This product has been discontinued, purchase now while stock is still available!
TFT Product Specifications
| Size: | 2.4" diagonal |
| Display Format: | 262K colors; 240x320 pixels |
| Display Type: | Standard |
| Display Mode: | Transmissive |
| Optimal View: | 12:00 |
| Touchscreen: | Resistive |
| Outline L x W x H: | 42.72mm x 60.26mm x 3.6mm |
| Viewing Area L x W: | 37.72mm x 53.13mm |
| Active Area L x W: | 36.72mm x 48.96mm |
| Supply Voltage: | 2.8V |
| Luminance: | 250 nits |
| Interface: | Parallel |
| Compatibility: | Arduino and similar development boards |
| Controller Type: | ILI9341 |
| Connection Type: | 39-pin Hot-bar Solder FPC |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |
| Built-in Mounting: | None |
| Built-in EMI Shielding: | No |
TFT Custom Solutions
Cable Customization
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
Touchscreen Add-on
Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
Interface Customization
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals.
Cover Glass
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
Quality Standards
At Newhaven Display we strive every day to provide our customers with the highest quality products. This means Quality, Engineering, and Manufacturing teams are aligned to exceed your expectations.
Our customers should expect their products to meet or exceed the following standards:
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
