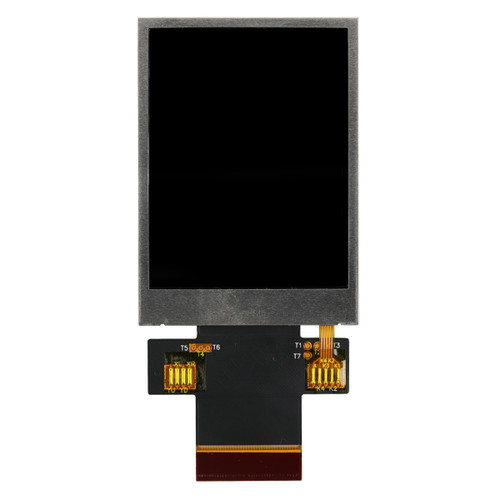

NHD-2.4-240320AF-CTXP | 2.4" IPS TFT LCD | 240x320 Resolution | Parallel or SPI Interface | No Touchscreen
With a resolution of 240x320 pixels and no touch panel, this 2.4-inch IPS LCD TFT offers great visuals at an affordable price. It can be used in applications that do not require touch inputs. This compact, slim TFT display offers 350 nits with great viewing angles and excellent color reproduction due to the IPS technology. There are two interface options: 8-bit/16-bit 8080-II parallel interface or 3-wire SPI interface. This interface offers great flexibility and compatibility with various Arduino models and other similar development and prototyping boards.
2.4" IPS LCD Display Compatible with Arduino
The SPI interface enables fast communication and easy connection with Arduino boards. This display also features a 40-pin FFC, 0.5mm pitch connection style, and is powered by the ST7789VI controller. This display has been designed with the same mechanical footprint as the standard TN displays, which makes it compatible with existing overlays, enclosures, and other assembly components that are presently used with the TN models. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
Product Overview
2.4" TFT Product Specifications
| Size: | 2.4" diagonal |
| Display Format: | 262K colors; 240x320 pixels |
| Display Type: | IPS |
| Display Mode: | Transmissive |
| Optimal View: | Full view |
| Touchscreen: | None |
| Outline L x W x H: | 42.8mm x 59.91mm x 2.55mm |
| Viewing Area L x W: | 37.72mm x 49.96mm |
| Active Area L x W: | 36.72mm x 48.96mm |
| Supply Voltage: | 3.3V |
| Luminance: | 350 nits |
| Interface: | 8-bit/16-bit 8080-II Parallel or 3-wire SPI |
| Controller Type: | ST7789VI |
| Compatibility: | Arduino and similar development boards |
| Connection Type: | 40-pin FFC |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |
| Built-in Mounting: | None |
| Built-in EMI Shielding: | Yes |
