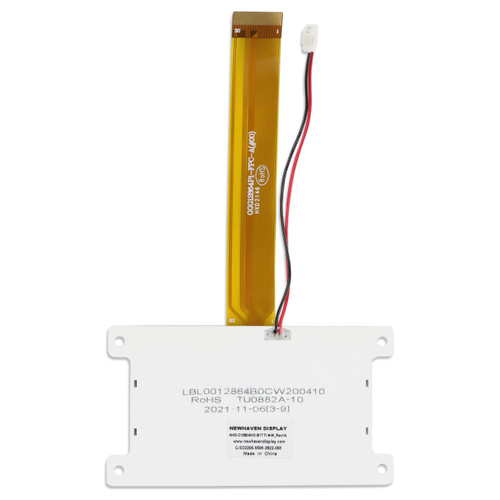

NHD-C12864WO-B1TTI#-M | Monochrome Graphic COG | 128x64 Pixels | White Pixels on Black Background | White Backlight | FSTN (-) Negative Display | Mounting Holes | Non-Stocked
This Newhaven 128x64 graphic Chip-On-Glass (COG) Liquid Crystal Display module shows bright white pixels illuminated on a deep black background. This transmissive LCD display is engineered to provide optimal visibility and impressive color when used in darker settings. A strong backlight is built into the display to provide high contrast and ensure easy readability of all graphics on screen.
This graphic LCD display module comes complete with mounting holes built into the display for easy installation. It’s also fully compatible with Arduino, which allows for seamless connection with other electronic systems for a wide range of applications. Designed to withstand difficult operating conditions, the NHD-C12864WO-B1TTI#-M model operates exceptionally when used within a temperature range from -20 to 70 degrees Celsius. The optimal viewing angle for this LCD is 6:00, it operates at 3.3V supply voltage, and it’s RoHS compliant.
LCD Product Specifications
| Display Format: | 128 x 64 Pixels |
| Display Type: | FSTN (-) |
| Display Mode: | Transmissive |
| Optimal View: | 6:00 |
| Outline L x W x H: | 89.7mm x 49.8mm x 6.0mm |
| Viewing Area L x W: | 69.0mm x 36.5mm |
| Active Area L x W: | 63.97mm x 31.97mm |
| Supply Voltage: | 3.3 V |
| Backlight: | White |
| Interface: | Serial / Parallel |
| Compatibility: | Arduino and similar development boards |
| Controller Type: | ST7567 |
| Connection Type: | 30 pin FFC cable with 0.50mm pitch |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |
| Added Feature: | Mounting Holes |
LCD Custom Solutions
Cable Customization
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
Connector Customization
Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.
Interface Customization
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals.
PCB Modifications
Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.
Quality Standards
At Newhaven Display we strive every day to provide our customers with the highest quality products. This means Quality, Engineering, and Manufacturing teams are aligned to exceed your expectations.
Our customers should expect their products to meet or exceed the following standards:
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
