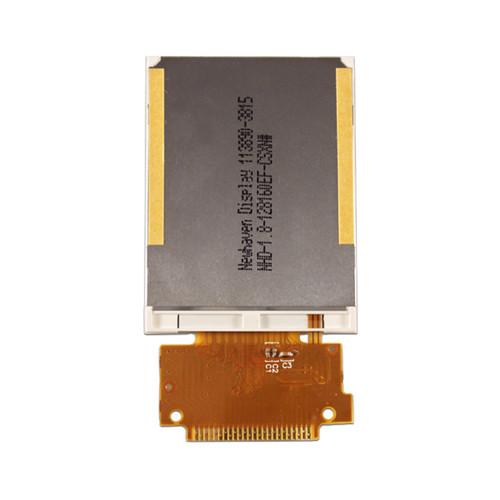

NHD-1.8-128160EF-CSXN# | 1.8" Sunlight Readable Display | 128x160 Pixels | Hot-bar Solder Directly to PCB | No Touchscreen
This sunlight readable 1.8” TFT LCD display has a resolution of 128x160 pixels, a 6:00 optimal view, and a high brightness LED backlight with 1,000 nits, making it an ideal choice for projects that require visibility in outdoor or brightly lit environments. While this transmissive LCD does not feature a touchscreen, its compact size, low 3.0 voltage power supply, and impressive display quality make it an excellent choice for projects that require visual output in portrait mode without touch functionality.
1.8" TFT LCD with Parallel Interface and Compatible with Arduino
Installation is a breeze with the ability to hot-bar solder directly to PCB, allowing you to focus on your projects without worrying about loose connections. Powered by the ILI9163V controller, this TFT LCD display delivers exceptional performance and reliability. The controller optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics. Popular industries for this TFT size include IoT, industrial automation, consumer electronics, test and measurement, and handheld devices. They are also great for DIY or prototyping projects thanks to its Arduino compatibility. The 8-bit parallel interface enables fast and efficient communication between your Arduino and the display, ensuring smooth data transfer and real-time updates. This interface provides flexibility and compatibility with various Arduino models. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
Product Overview
1.8" TFT LCD Product Specifications
| Size: | 1.8" diagonal |
| Display Format: | 128x160 pixels |
| Display Type: | Sunlight Readable |
| Display Mode: | Transmissive |
| Optimal View: | 6:00 |
| Touchscreen: | None |
| Outline L x W x H: | 34.7mm x 46.75mm x 2.4mm |
| Viewing Area L x W: | 29.03mm x 36.04mm |
| Active Area L x W: | 28.03mm x 35.04mm |
| Supply Voltage: | 3.0V |
| Luminance: | 1,000 nits |
| Interface: | Parallel |
| Compatibility: | Arduino and similar development boards |
| Controller Type: | ILI9163V |
| Connection Type: | Hot-bar solder directly to PCB |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature:; | -30°C ~ 80°C |
| Built-in Mounting: | None |
| Built-in EMI Shielding: | No |
1.8" TFT Custom Solutions
LCD Cable Customization
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
1.8" Touchscreen Add-on
Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
LCD Interface Customization
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals.
1.8" LCD Cover Glass
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
Quality Standards
At Newhaven Display we strive every day to provide our customers with the highest quality products. This means Quality, Engineering, and Manufacturing teams are aligned to exceed your expectations.
Our customers should expect their products to meet or exceed the following standards:
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
