Sunlight-readable 3.5" IPS TFT display with brilliant high-resolution visuals and MIPI simplicity.
Bring your project to life with this 3.5" IPS TFT LCD, offering a crisp 640x480 high resolution, vibrant color reproduction, and ultra-wide viewing angles. With a high-brightness 950-nit backlight and built-in EMI shielding, this display performs beautifully (even in direct sunlight) making it ideal for outdoor, industrial, or high-visibility applications.
Designed for systems that don't require touch input, this compact LCD delivers stunning visual output with a low 3.0V power supply. It's powered by the FL7703NI driver IC and connects via an FFC cable, ensuring seamless integration and smooth image rendering. Fully compatible with Raspberry Pi and engineered for long-term reliability, this display is RoHS compliant and meets strict environmental and safety standards.
Equipped with a 4-lane MIPI DSI interface, this display supports high-resolution graphics and faster refresh rates with lower EMI and fewer connection wires. It's ideal for modern embedded systems requiring smoother animations, deeper color depth, and high-speed data transfer. Commonly used in mobile and wireless devices, MIPI enables easy integration with sensors, cameras, and MIPI processors, especially valuable in medical, multimedia, and portable devices.
NHD-3.5-640480EF-MSXP: Technical Specifications
| Size | 3.5" Diagonal |
|---|---|
| Resolution | 640x480 Pixels |
| Color | 24-Bit True Color |
| Display Type | Sunlight Readable IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | None |

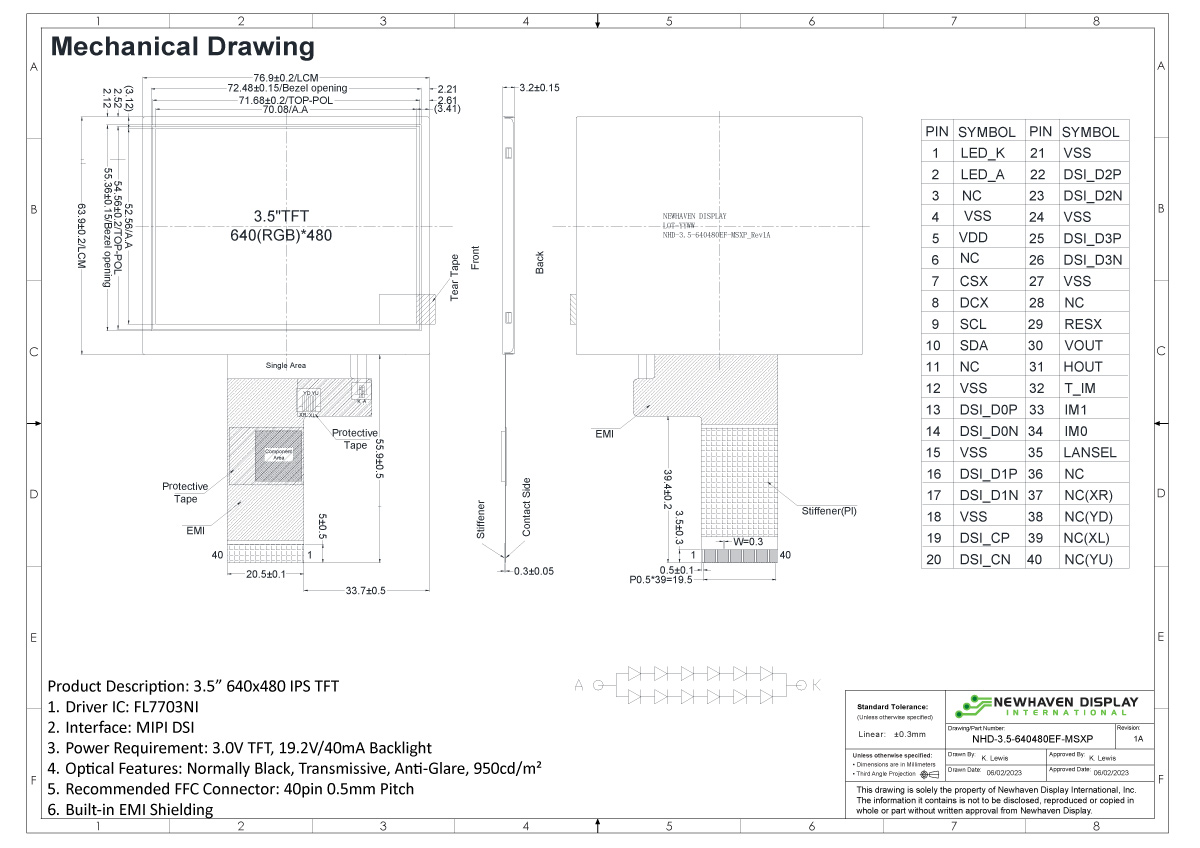

| Outline L x W x H | 76.9mm x 63.9mm x 3.2mm |
| Viewing Area L x W | 71.68mm x 54.56mm |
| Active Area L x W | 70.08mm x 52.56mm |
| Supply Voltage | 3.0V |
| Luminance | 950 Nits |
| Interface | 4-Lane MIPI DSI |
| Compatibility | Raspberry Pi and similar boards |
| Controller Type | FL7703NI |
| Connection Type | 40-Pin FFC |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | Yes |
