7" multi-touch IPS TFT display with LVDS interface for high-visibility interactive projects
This 7.0" IPS TFT LCD delivers crisp 800x480 resolution, vibrant color accuracy, and wide viewing angles, making it ideal for applications that need reliable visual performance in any environment. With an 850-nit LED backlight, the screen remains fully readable in direct sunlight, perfect for indoor or outdoor use.
Equipped with a responsive 10-point capacitive touchscreen and built-in I2C interface, this display enables smooth gesture-based interaction. The cover glass and FocalTech FT5426G controller support precise touch recognition, ideal for interactive kiosks, medical devices, and industrial control systems.
The display features a 40-pin FFC connection and LVDS interface for stable signal performance, while EMI shielding protects against interference in electrically noisy environments. Powered by the ST7277 driver IC, it ensures consistent graphics rendering and optimized functionality. Like all Newhaven Display modules, this unit meets RoHS and REACH compliance for environmental and safety standards.
Using your own cover glass or overlay with our capacitive touchscreen displays? Talk to our engineering team about having us calibrate the touchscreen's sensitivity to maintain optimal performance. We can also work with you to customize and install cover glass so you don't have to.
NHD-7.0-800480AF-LSXP-CTP: Technical Specifications
| Size | 7" Diagonal |
|---|---|
| Resolution | 800x480 Pixels |
| Color | 24-Bit True Color |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touchscreen | Capacitive + Cover Glass |

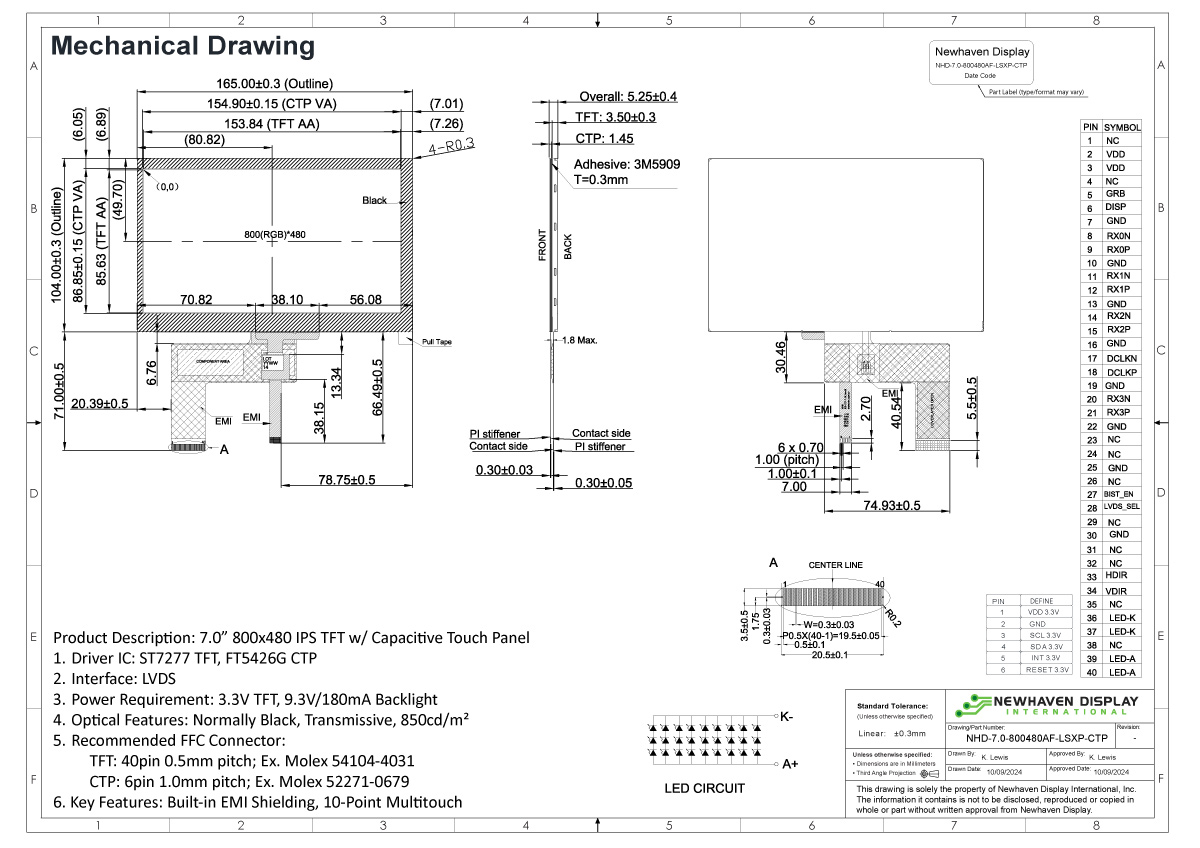

| Outline L x W x H | 165mm x 104mm x 5.25mm |
| Viewing Area L x W | 154.9mm x 86.85mm |
| Active Area L x W | 153.84mm x 85.63mm |
| Supply Voltage | 3.3V |
| Luminance | 850 Nits |
| Interface | LVDS |
| Display Controller Type | ST7277 |
| CTP Controller Type | FT5426G |
| Connection Type | 40-Pin FFC (CTP: 6-Pin FFC) |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 80° C |
| Built-In Mounting | None |
| Built-In EMI Shielding | Yes |
