Versatile Breakout Board 28 Pin FFC Connector and 2x14 Thru-holes
The NHD-FFC28 is designed to get you working on your project quickly. It uses a 0.5mm pitch 28 pin FFC connection opposite 2x14 thru-holes with a 2.54mm pitch to ensure stability and allow you to focus your time on developing. Its small form-factor and mounting holes provide great flexibility and easy mounting in your design or prototype.

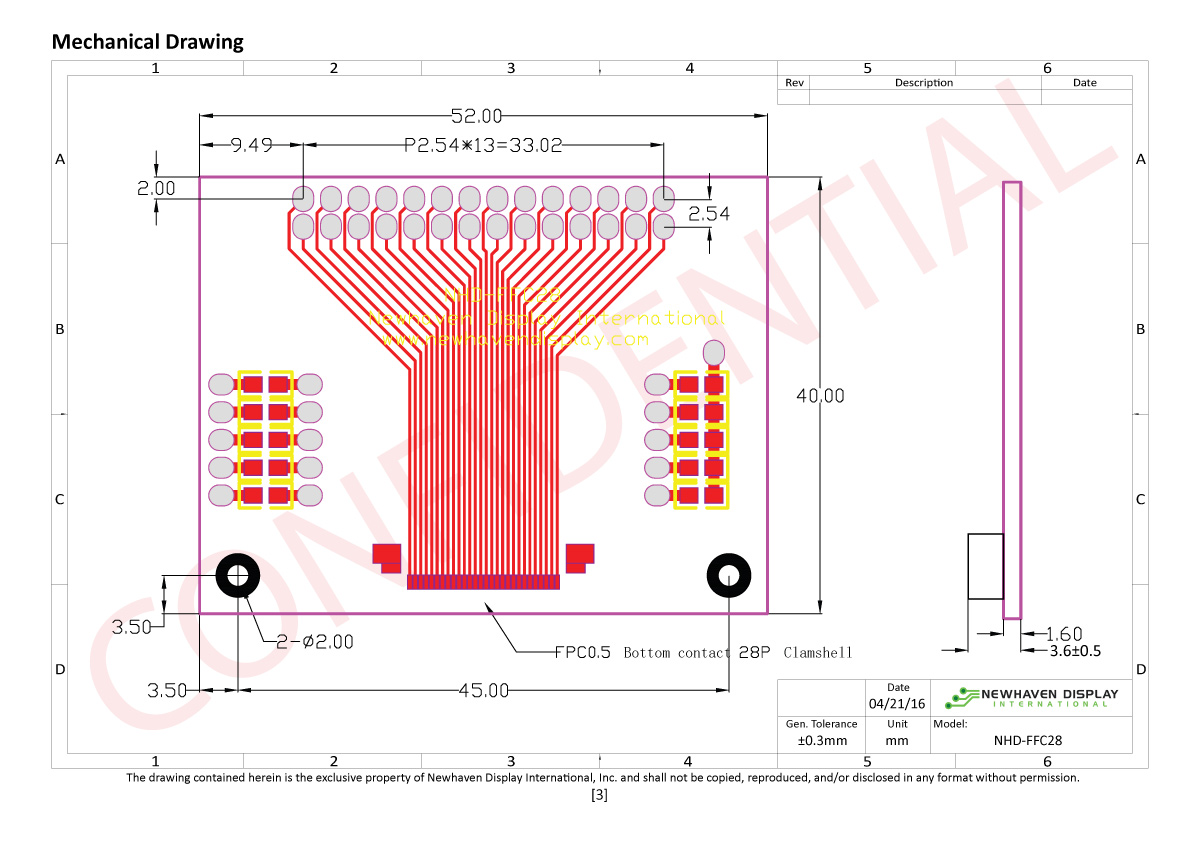

NHD-FFC28: Technical Specifications
| Function | FFC Breakout Board |
|---|---|
| Connection Type | 28 Pin 0.5mm Pitch FFC Connector, 2.54mm Pitch 2x14 Thru-hole |
| Outline L x W | 52mm x 40mm |
| Mounting | 3.5mm Mounting Holes |
